Fuel Tank 1

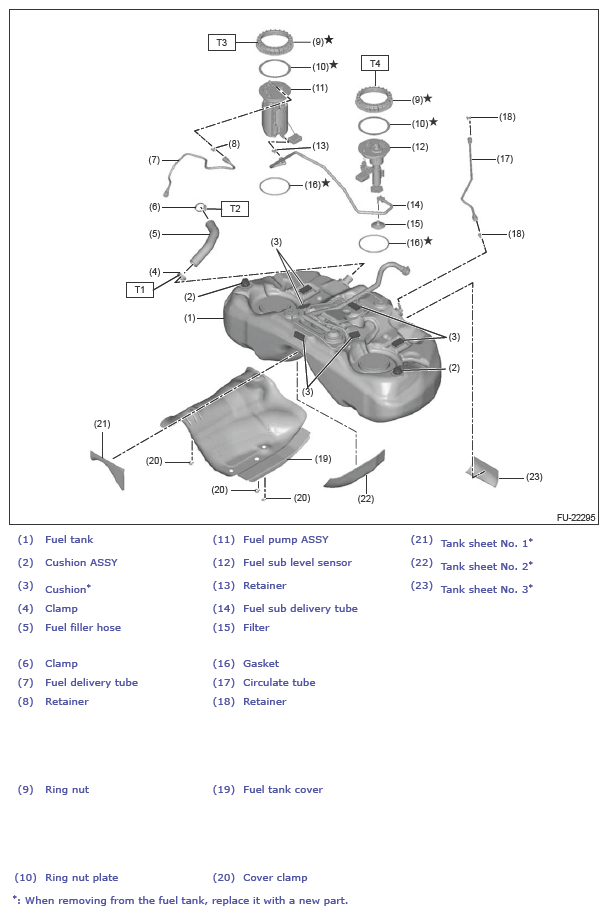

Fig 1: Fuel Tank 1 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 5 (0.5, 3.7)

T3:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL PUMP ASSEMBLY>INSTALLATION .

T4:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL SUB LEVEL SENSOR>INSTALLATION .
