Oil Pipe

• Oil pipe (vacuum pump)

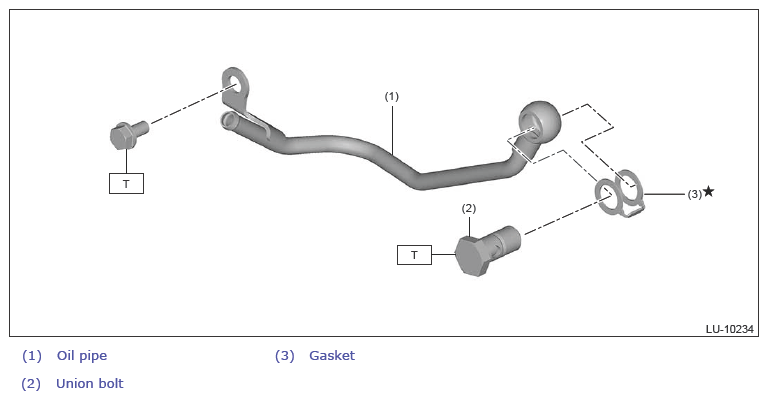

Fig 1: Oil Pipe Components (With Torque Specifications) (Vacuum Pump)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to LUBRICATION (H4DOTC)>OIL PIPE>INSTALLATION>OIL PIPE (VACUUM PUMP) .

• Oil pipe (scavenge pump)

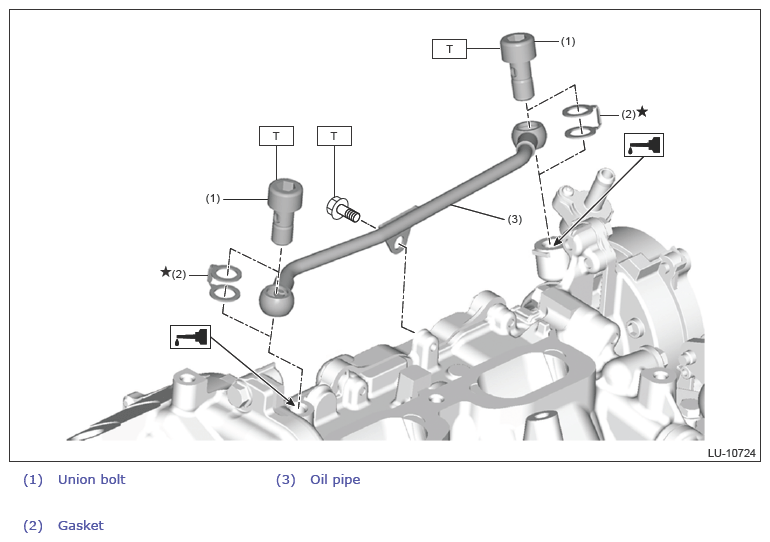

Fig 2: Oil Pipe Components (With Torque Specifications) (Scavenge Pump)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to LUBRICATION (H4DOTC)>OIL PIPE>INSTALLATION>OIL PIPE (SCAVENGE PUMP) .
