Engine Intake System (Induction): Intercooler: Removal

Remove the bolts which secure the intercooler, and remove the intercooler stay RH from the intake manifold assembly.

Courtesy of SUBARU OF AMERICA, INC.

Release the lock of spring (A) of intake duct No. 2, and remove the intercooler and the intake duct No. 3 as a single unit.

NOTE:

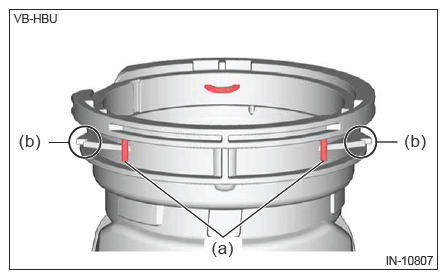

Move the both ends (a) of the spring to the cutouts (b) of the intake duct No. 2 using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Remove the bolt securing the vacuum pipe assembly stay to the intercooler stay LH. (MT model)

Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler stay LH from the intake manifold assembly.

Courtesy of SUBARU OF AMERICA, INC.
