Fuel Delivery and Evaporation Lines: Installation: Notes

Install the fuel sub delivery tube.

Set the fuel sub delivery tube to the fuel tank.

NOTE:

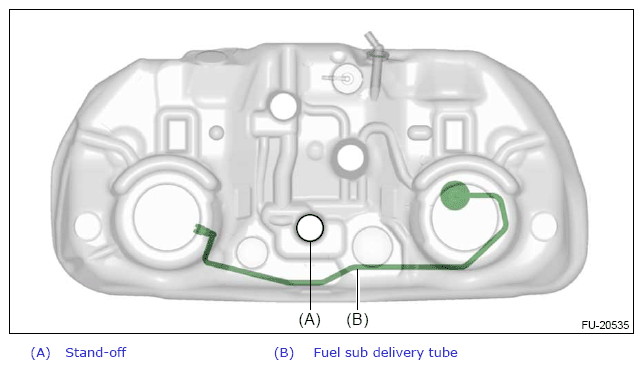

Route the fuel sub delivery tube in front of the stand-off as shown in the figure.
Check the fuel sub delivery tube to make sure it's not twisted.

Courtesy of SUBARU OF AMERICA, INC.

Install the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL SUB LEVEL SENSOR>INSTALLATION
Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL PUMP ASSEMBLY>INSTALLATION

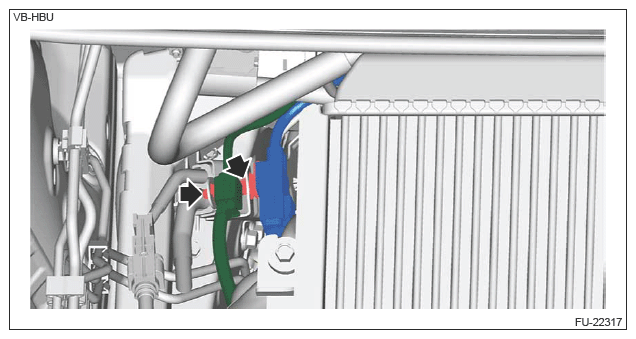

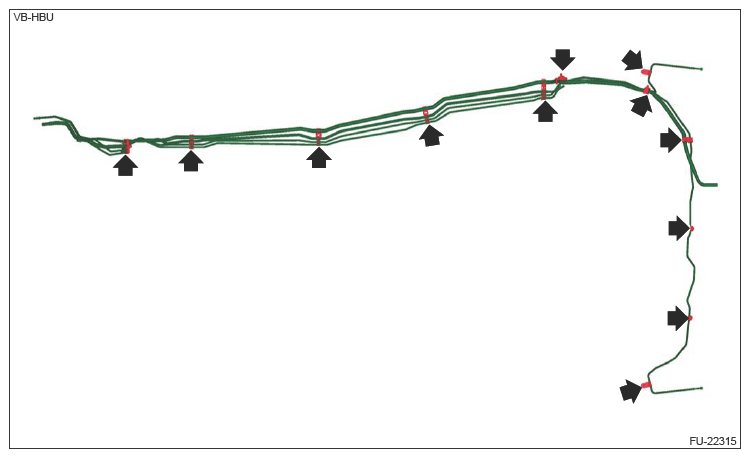

Install the fuel pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.

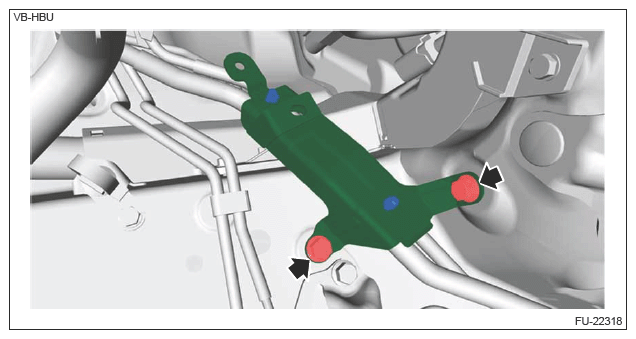

Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B and fuel pipe bracket C.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the brake pipe and brake hose.
Brake pipe:

Ref. to BRAKE>BRAKE PIPE>INSTALLATION

Brake hose:

Ref. to BRAKE>BRAKE HOSE>INSTALLATION
Install the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>INSTALLATION

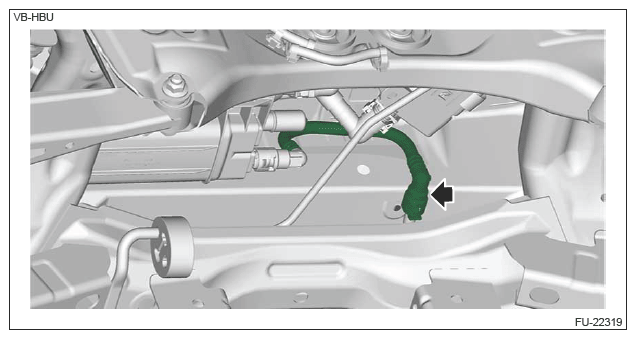

Connect the purge tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D)

Courtesy of SUBARU OF AMERICA, INC.
Connect individual hoses and tubes to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 1
- For information about disconnecting fuel delivery tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D)
- For information about disconnecting the circulate tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D)
Install the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL TANK>INSTALLATION

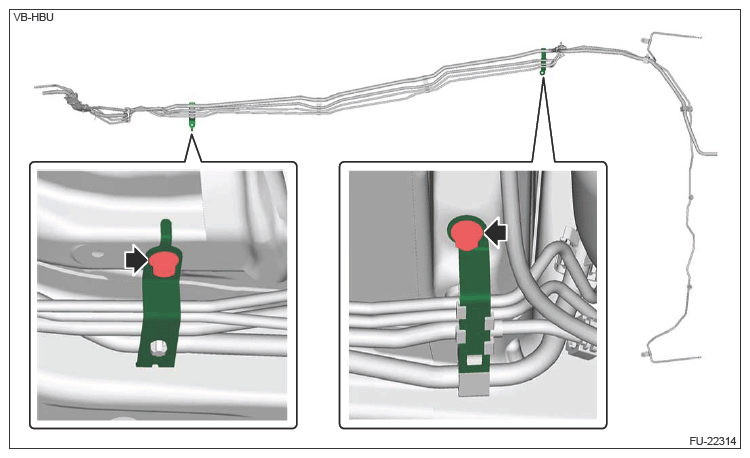

Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Install the connector to the fuel pipe bracket A.

Courtesy of SUBARU OF AMERICA, INC.

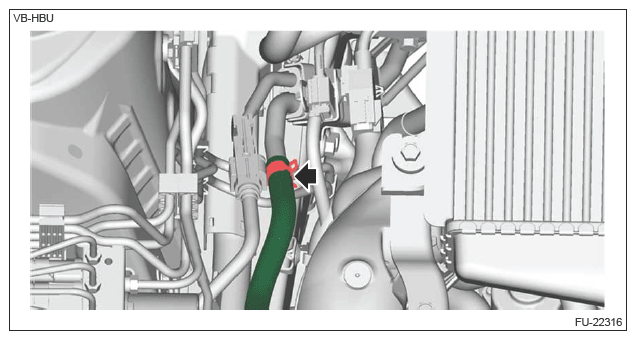

Connect the evaporation hose to fuel pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.

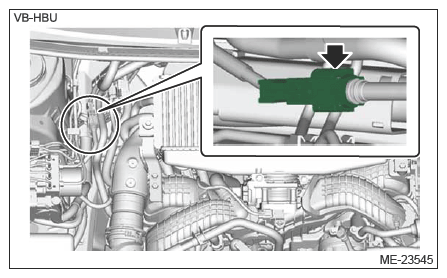

Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A)

Courtesy of SUBARU OF AMERICA, INC.

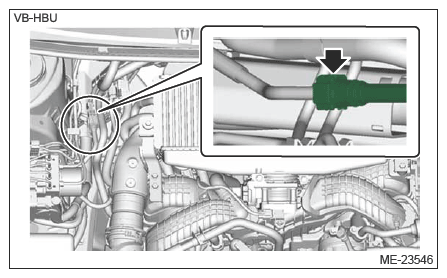

Install the fuel delivery tube clamp to the fuel delivery tube.

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
