Fuel Pump Control Unit: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
- Remove the trim panel trunk side RH. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL

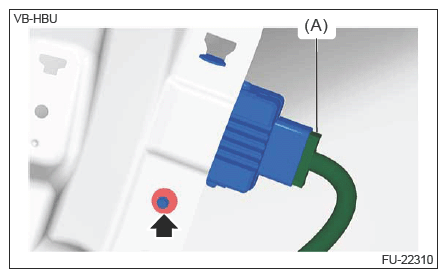

- Disconnect the connector (A), and remove the fuel pump control unit.
