Accelerator Stopper

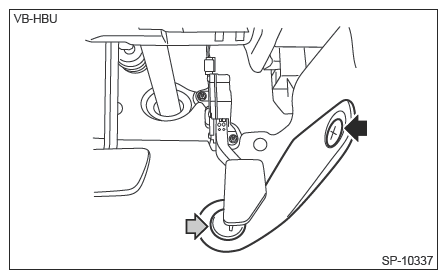

  1. Remove the clip and accelerator stopper, and then remove the accelerator plate.
NOTE:

Pulling out the accelerator stopper may damage the inside. Remove it by rotating it counterclockwise.

G14601564Courtesy of SUBARU OF AMERICA, INC.
