LH Side

1. Install the ignition coil.
   CAUTION:

   Degrease the mounting bolts, rocker cover installation portion and ignition coil installation hole.

   Tightening torque:

   8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

2. Connect the connector to the ignition coil.
3. Attach the bracket.

   Tightening torque:

   7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

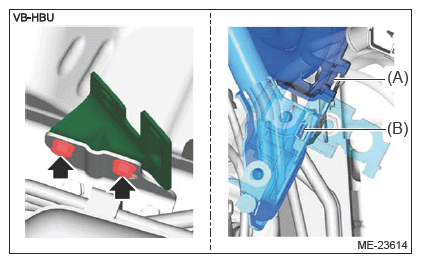

4. Place the engine wiring harness and secure the engine wiring harness to the bracket with the claw (A).
5. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw (B).

   Courtesy of SUBARU OF AMERICA, INC.

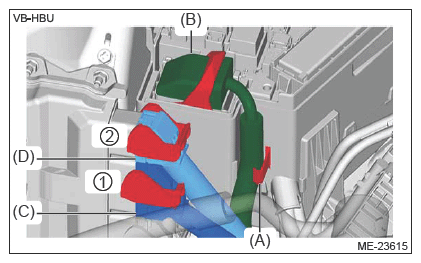

6. Install the engine wiring harness to the clip (A), and connect the connector (B).
7. Connect the connector (C) and connector (D) in numerical order shown in figure.

Courtesy of SUBARU OF AMERICA, INC.

Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC) >BATTERY INSTALLATION .
