LH Side
- Install the spark plug.NOTE:
Magnet type plug wrench is recommended.
Tightening torque:
17.5 N.m (1.8 kgf-m, 12.9 ft-lb)

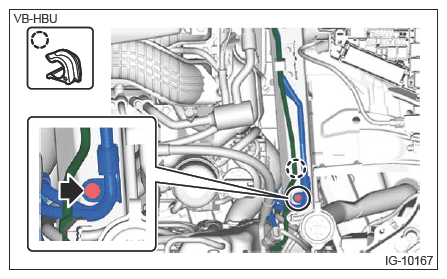

- Install the bolt securing the CVTF cooler pipe No. 2, and install the pipe evaporator cooling to the clip.CAUTION:
Be careful not to bend the pipe evaporator cooling and the CVTF cooler pipe No. 2.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the ignition coil (LH side). Ref. to IGNITION (H4DOTC)>IGNITION COIL>INSTALLATION>LH SIDE .
- Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY>INSTALLATION .
