Engine Control Module (ECM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

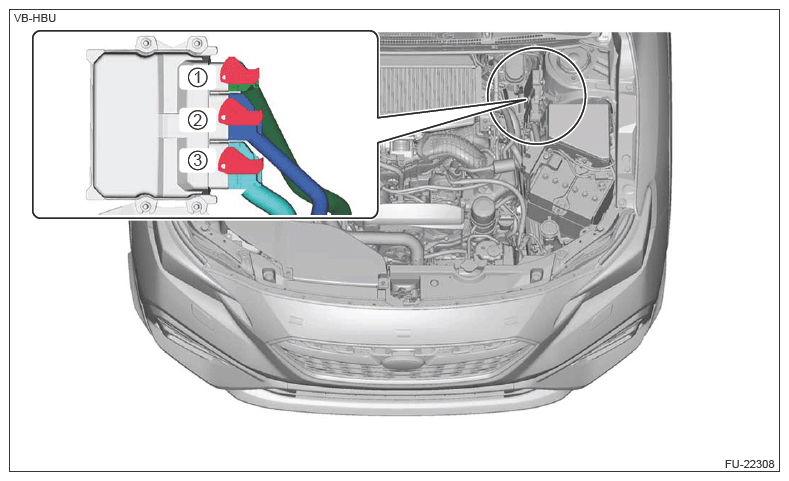

  2. Disconnect the connector in numerical order as shown in the figure.
    G14601058Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ECM from vehicle.
    G14601059Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ECM bracket.
    G14601060Courtesy of SUBARU OF AMERICA, INC.
