Inspection Mode Ax
| DTC | Description & trouble part | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0851 | PARK/NEUTRAL SWITCH INPUT CIRCUIT LOW | MT model | 2 |
| P0852 | PARK/NEUTRAL SWITCH INPUT CIRCUIT HIGH | MT model | 2 |
WARNING:
When performing inspection mode AX on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
NOTE:
Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.
- Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
- Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY

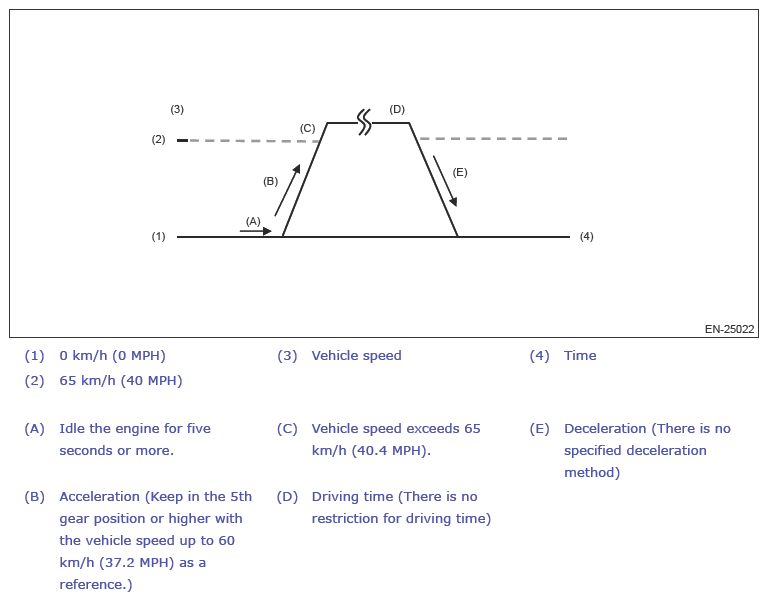

- Drive according to the drive pattern described below.
- Read the pending code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
