MT Gear Select Cable: Inspection

  1. Check that there is no deformation, cracks or other damages.

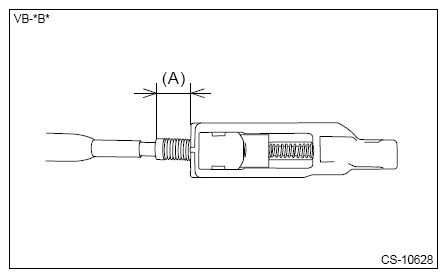

  2. Check the exposed length (A) of MT gear select cable.

    Specification:

    11 mm (0.4 in)

    G14602445Courtesy of SUBARU OF AMERICA, INC.
