MT Gear Select Cable: Removal

CAUTION:

Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
Do not bend the MT gear select cable more than necessary.
Do not twist the MT gear select cable more than necessary.

Remove the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL .

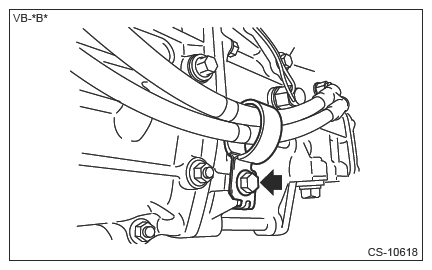

Remove the cable clamp.

Courtesy of SUBARU OF AMERICA, INC.

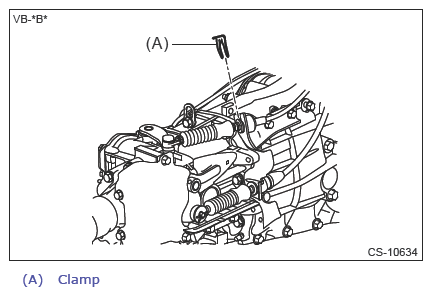

Remove the clamp.

Courtesy of SUBARU OF AMERICA, INC.

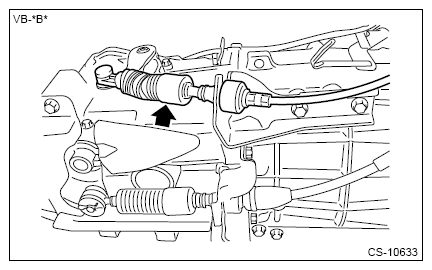

Remove the MT gear select cable.

Courtesy of SUBARU OF AMERICA, INC.

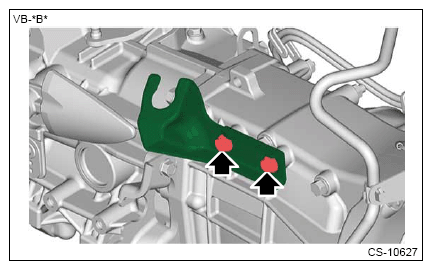

Remove the select bracket.

Courtesy of SUBARU OF AMERICA, INC.
