MT Gear Shift Cable: Removal

CAUTION:

Do not bend the MT gear shift cable more than necessary.

Remove the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL .

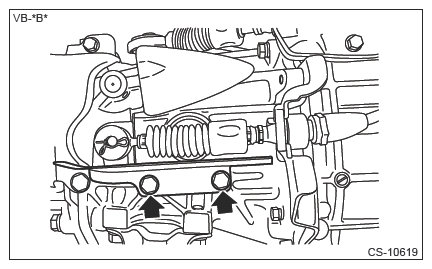

Remove the cable clamp.

Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover.

Courtesy of SUBARU OF AMERICA, INC.

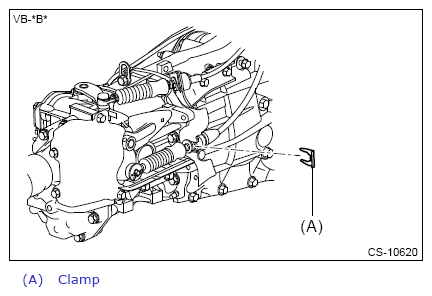

Remove the clamp.

Courtesy of SUBARU OF AMERICA, INC.

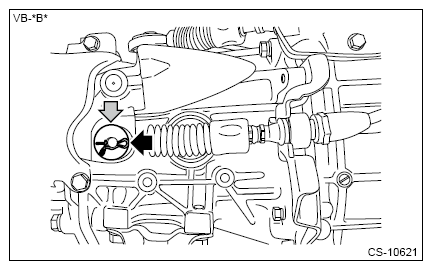

Remove the snap pin and washer.

Courtesy of SUBARU OF AMERICA, INC.

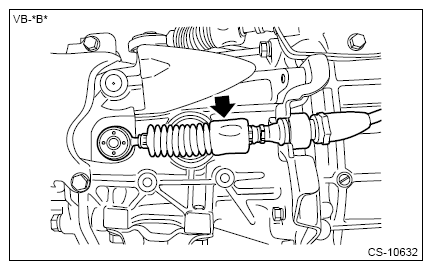

Remove the MT gear shift cable.
CAUTION:
Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

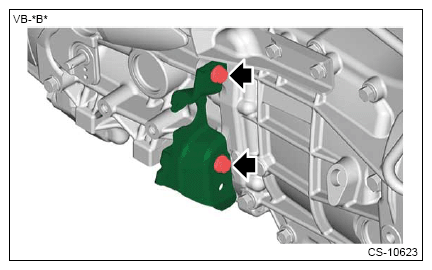

Remove the shift bracket.

Courtesy of SUBARU OF AMERICA, INC.
