MT Gear Shift Lever: Removal

NOTE:

The MT gear shift lever cannot be disassembled.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>REMOVAL .

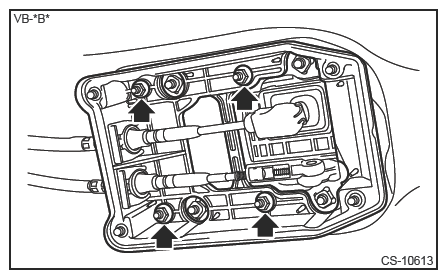

Remove the cable cover plate.

Courtesy of SUBARU OF AMERICA, INC.

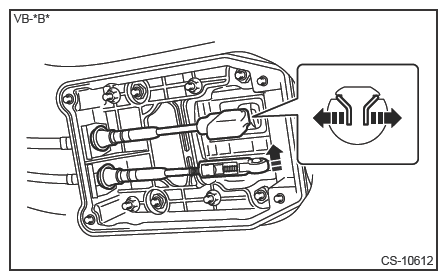

Disconnect the MT gear shift cable and MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner more than necessary.
- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Remove the MT gear shift cable by spreading the spring.
- Remove the MT gear select cable in the direction of arrow.
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover assembly.

Courtesy of SUBARU OF AMERICA, INC.

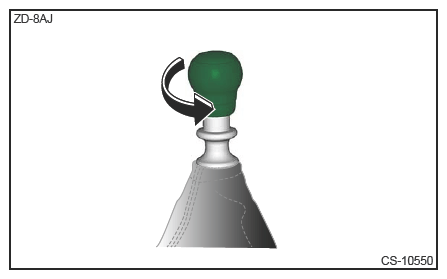

Remove the shift knob by turning it counterclockwise.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM >CENTER CONSOLE>REMOVAL .

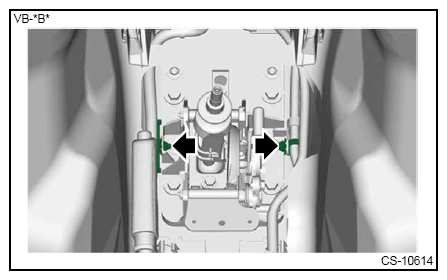

Remove the clips securing the harness.

Courtesy of SUBARU OF AMERICA, INC.

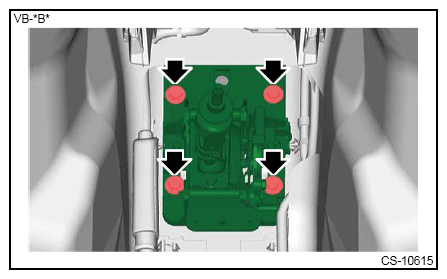

Remove the MT gear shift lever.

Courtesy of SUBARU OF AMERICA, INC.
