Select Cable: Adjustment

  1. Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
  2. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .
  3. Remove the center exhaust cover and rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .
  4. Loosen the adjusting nut (front) and adjusting nut (rear).
    G14602414Courtesy of SUBARU OF AMERICA, INC.

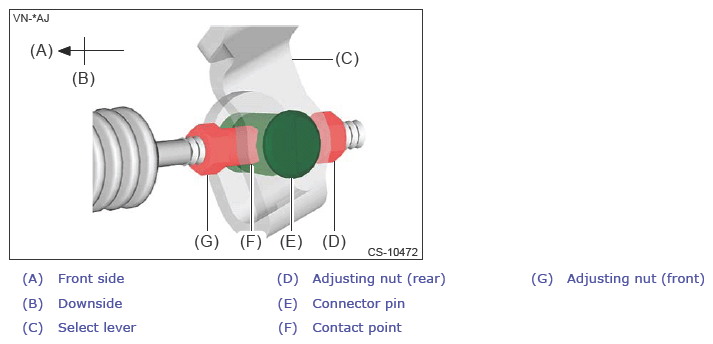

  5. Turn the adjusting nut (front) until it lightly touches the connector pin.
    G14602415Courtesy of SUBARU OF AMERICA, INC.
  6. While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  7. After the completion of adjustment, check that the select lever operates normally at all ranges.
  8. Install the center exhaust cover and rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>INSTALLATION .
  9. Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR) .
  10. Release the shift lock and shift the select lever to the "P range". Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
