Select Lever: Installation

  1. Install the select cable to the select lever. Ref. to CONTROL SYSTEMS>SELECT CABLE>INSTALLATION .
  2. Install the select lever.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  3. Install the clip securing the harness.
  4. Connect the connector.

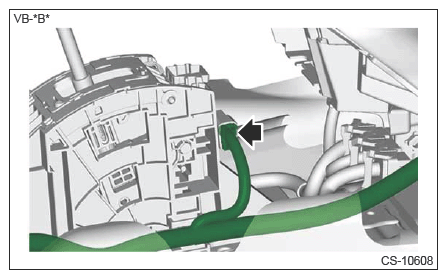

    G14602396Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the select cable to the transmission main body. Ref. to CONTROL SYSTEMS>SELECT CABLE>INSTALLATION .
  6. Install the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>INSTALLATION .
  7. Install the clamp to the grip.
    NOTE:

    Insert it from the front side.

  8. Install the grip.
    NOTE:

    Install it while pressing on the clamp.

  9. Install the boot to the grip.
  10. Release the shift lock using a screwdriver, etc. and shift the select lever to the "P range".
  11. Install the mat center tray.
  12. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
