Scavenge Pump

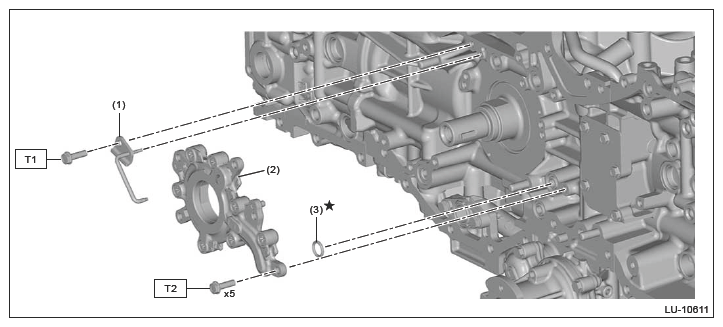

Fig 1: Scavenge Pump Components Location
G16385145Courtesy of SUBARU OF AMERICA, INC.
(1) Oil jet
(2) Scavenge pump
(3) O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Ref. to LUBRICATION (H4DOTC)>SCAVENGE PUMP>INSTALLATION .
