Heat Shield Cover

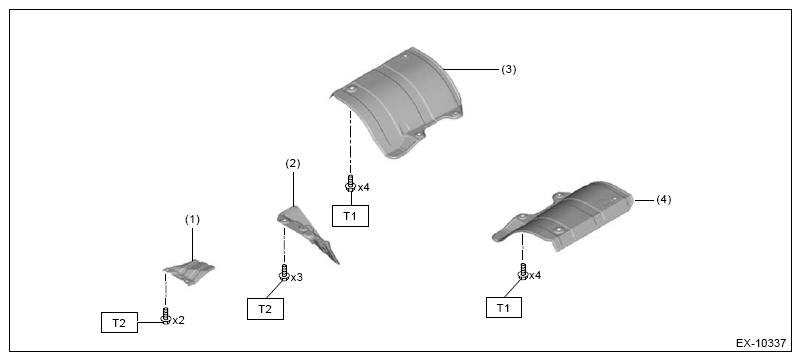

Fig 1: Heat Shield Cover Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Center exhaust cover (front)
(2)
Center exhaust cover (rear)
(3)
Rear exhaust cover RH
(4)
Rear exhaust cover LH
Tightening torque: N.m (kgf-m, ft-lb)
T1: 10 (1.0, 7.4)
T2: 18 (1.8, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
