Fuel Injector LH
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the pipes using a container or cloth.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
- Remove the high-pressure fuel delivery pipes. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .

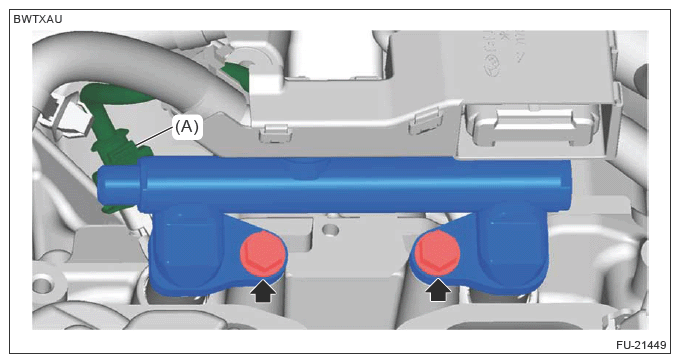

- Disconnect the connector (A) from fuel injector #2, and remove the fuel injector pipe LH.CAUTION: Pull out the assembly straight so that the seal surface of the fuel injector pipe LH is not damaged.
- Remove the holder from the fuel injector assembly.
- Using ST, remove the fuel injector assembly from the cylinder head.

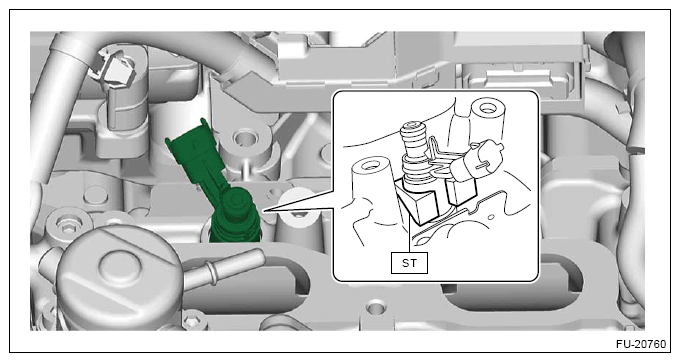

- Set the ST to the fuel injector #2.NOTE: Do not use the ST adapter for the fuel injector #4.
Preparation tool:
ST: ADAPTER L (18362AA070)

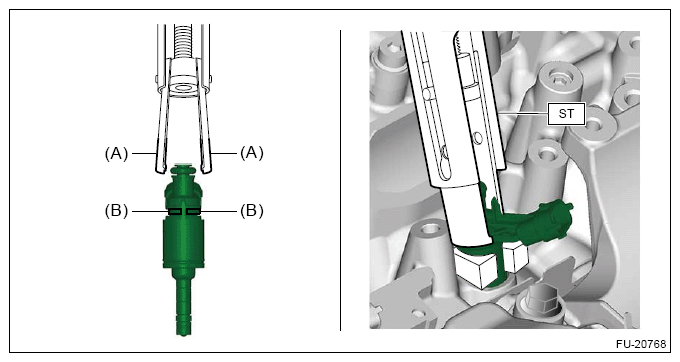

- Pinch the fuel injector groove (B) with the claw (A) of the ST.
Preparation tool:
ST: INJECTOR REMOVER (18356AA010)
- Press the ST to the cylinder head.

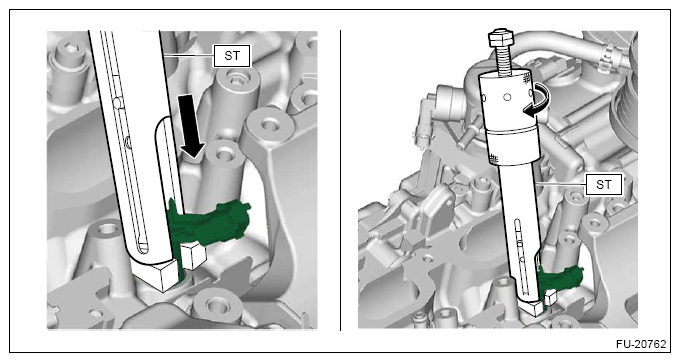

- Screw in the threaded section of the ST clockwise, and remove the fuel injector assembly from the cylinder head.CAUTION:
- If the tip of the fuel injector assembly is hit or the assembly is dropped, replace the fuel injector assembly with a new part.
- Identify the removed fuel injector assembly with a tag etc. marked with the cylinder number.
Preparation tool:
ST: INJECTOR REMOVER (18356AA010)
- Set the ST to the fuel injector #2.
