LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .

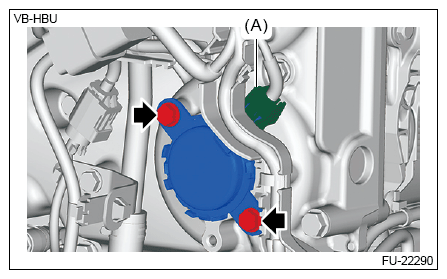

  3. Disconnect the connector (A) and remove the oil control solenoid.
    G16438559Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-ring and back-up ring from the oil control solenoid.
