LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .
  3. Remove the clip securing the engine wiring harness.
    G16438556Courtesy of SUBARU OF AMERICA, INC.

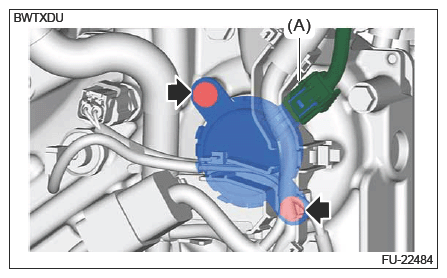

  4. Disconnect the connector (A) and remove the oil control solenoid.
    G16384124Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the O-ring and back-up ring from the oil control solenoid.
