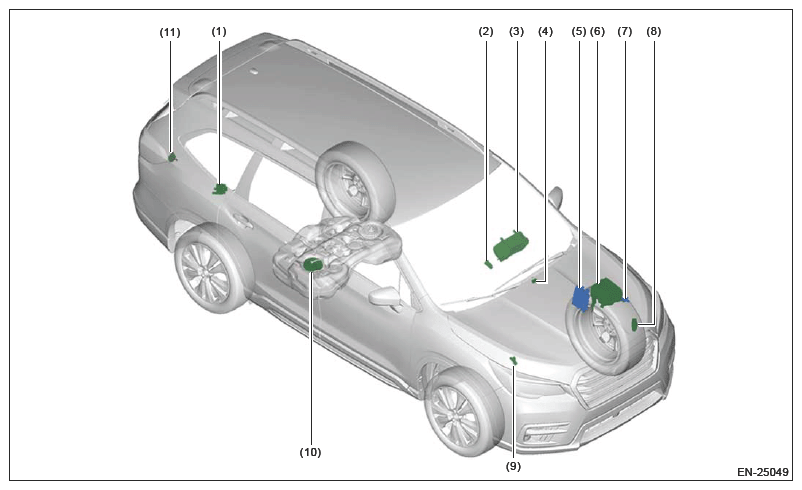

Engine Control System (Diagnostics - Introduction): Electrical Component Location: Location: Body

Courtesy of SUBARU OF AMERICA, INC.

(1)	Leak check valve ASSY
(2)	Push button ignition switch
(3)	Combination meter
(4)	Data link connector
(5)	Engine control module (ECM)
(6)	M/B
(7)	Battery sensor
(8)	Relay holder
(9)	Air flow sensor
(10)	Fuel pump
(11)	Fuel pump control unit
