Inspection Mode T
| DTC | Description & trouble part | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P000A | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | [Engine Coolant Temperature]: 70°C (158°F) or more | 2 |
| P000B | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | 2 | |
| P000C | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P000D | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P0011 | "A" Camshaft Position - Timing Over-Advanced or System Performance Bank 1 | 2 | |
| P0014 | "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1 | 2 | |
| P0021 | "A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 | |
| P0024 | "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 | |
| P0045 | TURBOCHARGER/SUPERCHARGER BOOST CONTROL "A" CIRCUIT/OPEN | 1 |
WARNING:
When performing inspection mode T on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
- Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
- Using the Subaru Select Monitor, clear the memory of [Engine Control System]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
- Drive according to the drive pattern described below.

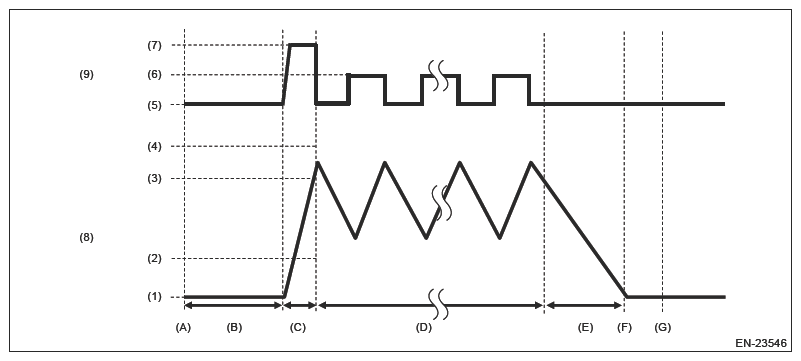

(1) 0 km/h (0 MPH) (2) 20 km/h (12.4 MPH) (3) 60 km/h (37.3 MPH) (4) 80 km/h (49.7 MPH) (5) 0% (6) 20% (7) 30 - 60 % (8) Vehicle speed (9) Accelerator pedal opening angle (A) Start the engine. (B) Idle the engine for at least three minutes. (C) Accelerate the vehicle to 60 km/h (37.3 MPH). (D) While maintaining vehicle speed at 60 km/h (37.3 MPH) as a reference, repeat the accelerator opening 0% (5 seconds) ←→ 20% (5 seconds) for 20 minutes or more. (E) Fully release the accelerator pedal to decelerate the vehicle for at least 5 seconds. (F) Stop the vehicle. (Driving method while vehicle is driven to a stop at safe place is not restricted) (G) Stop the engine. NOTE: In pattern (D), it is acceptable to stop the vehicle depending on the traffic conditions. Drive the vehicle with the accelerator opening angle of 0% (5 seconds) ←→ 20% (5 seconds) for an accumulated duration of 20 minutes or more. - Read the pending code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
