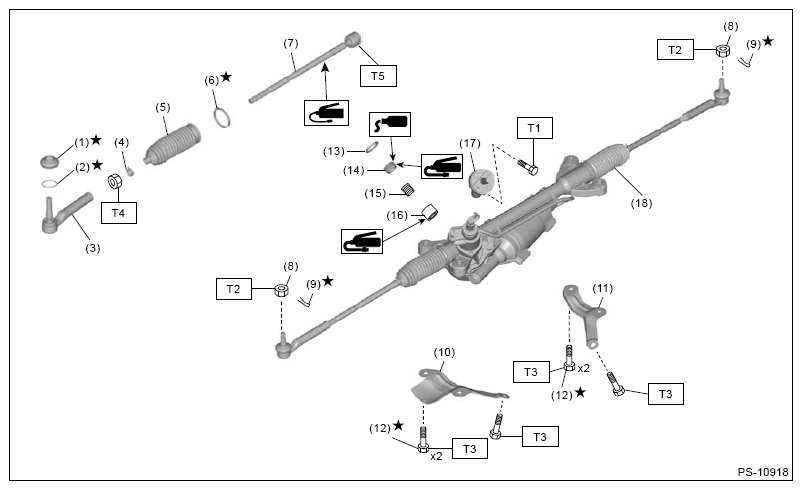

Steering Gearbox
| (1) | Dust boots |
| (2) | Clip boot tie-rod end |
| (3) | Tie-rod end |
| (4) | Clip boot tie-rod |
| (5) | Boot steering gearbox |
| (6) | Band boot |
| (7) | Tie-rod |
| (8) | Castle nut |
| (9) | Cotter pin |
| (10) | Stiffener LH |
| (11) | Stiffener RH |
| (12) | Bolt |
| (13) | Lock nut |
| (14) | Adjusting screw |
| (15) | Spring gearbox |
| (16) | Pad pressure |
| (17) | Universal joint LWR |
| (18) | Steering gearbox ASSY |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 24 (2.4, 17.7)
T2: 27 (2.8, 19.9)
T3: 60 (6.1, 44.3)
T4: 85 (8.7, 62.7)
T5: 110 (11.2, 81.1)
