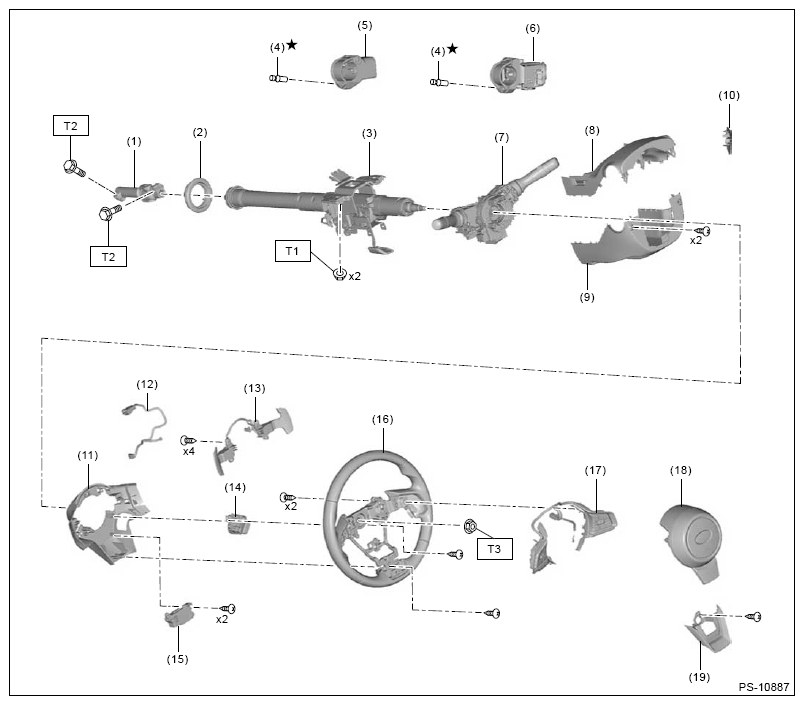

Steering Wheel And Column
| (1) | Universal joint UPR |
| (3) | Column ASSY steering |
| (4) | Set bolt |
| (5) | Steering lock control module (model with keyless access with push button start) |
| (6) | Ignition key lock (model without keyless access with push button start) |
| (7) | Switch ASSY combination (with steering roll connector) |
| (8) | Column cover UPR |
| (9) | Column cover LWR |
| (2) | Bushing |
| (10) | Cap key cylinder (model without keyless access with push button start) |
| (11) | Cover steering wheel LWR |
| (12) | Adapter cord (model with steering heater) |
| (13) | Paddle shift switch ASSY |
| (14) | Steering heater switch (model with steering heater) |
| (15) | Steering heater control module (model with steering heater) |
| (16) | Steering wheel |
| (17) | Satellite switch |
| (18) | Driver's airbag module |
| (19) | Cover spoke |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 20 (2.0, 14.8)
T2: 24 (2.4, 17.7)
T3: 39 (4.0, 28.8)
