Extension Case: Assembly

  1. Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE OIL SEAL>REPLACEMENT .

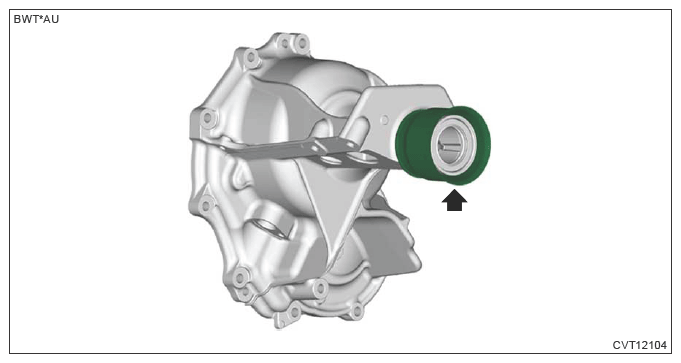

  2. Install the dust cover.
    G13622081Courtesy of SUBARU OF AMERICA, INC.
