Intermediate Case: Removal

  1. Remove the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>REMOVAL .
  2. Remove the bolt which secures the transmission hanger (A) and intermediate case.
    G16389647Courtesy of SUBARU OF AMERICA, INC.

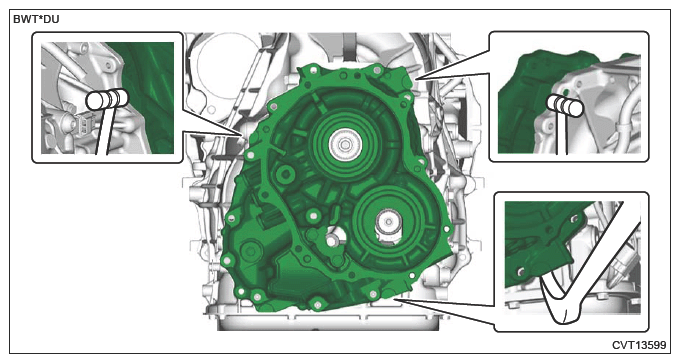

  3. Remove the intermediate case using a plastic hammer and a crowbar wrapped with protection tape at the points shown in the figure.
    G16389648Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-rings.
    G13200159Courtesy of SUBARU OF AMERICA, INC.

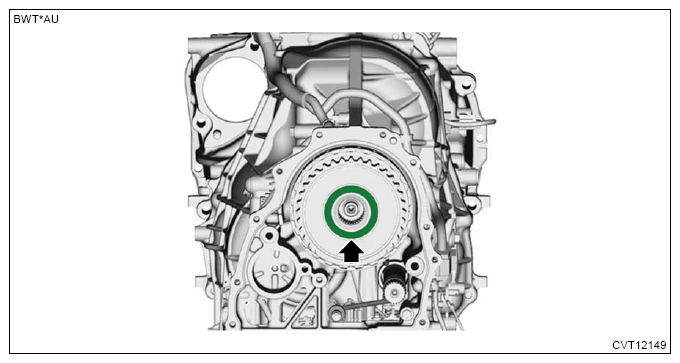

  5. Remove the thrust bearing.
    G13951237Courtesy of SUBARU OF AMERICA, INC.

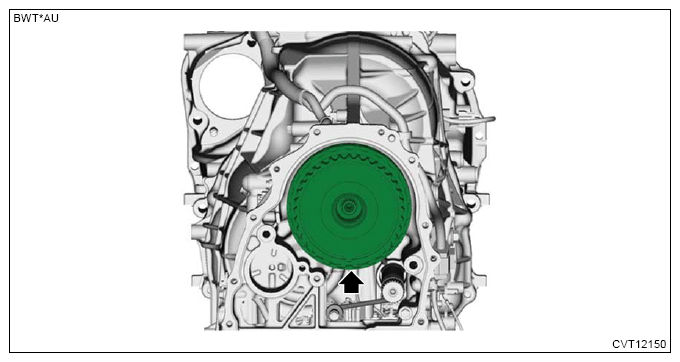

  6. Remove the planetary gear and forward clutch drum as a single unit.
    G13951238Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the washer.
    G13622135Courtesy of SUBARU OF AMERICA, INC.

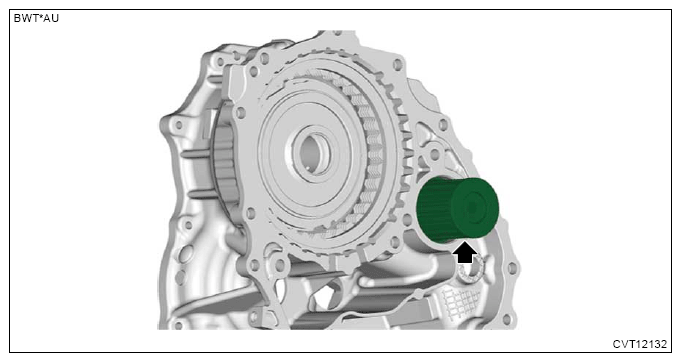

  8. Remove the CVTF filter.
    G13622136Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the liquid gasket from the intermediate case and transmission case.
