Oil Pump Chain: Disassembly
NOTE:
The driven sprocket is a non-disassembly part.
- Remove the snap ring.
 Courtesy of SUBARU OF AMERICA, INC.
|

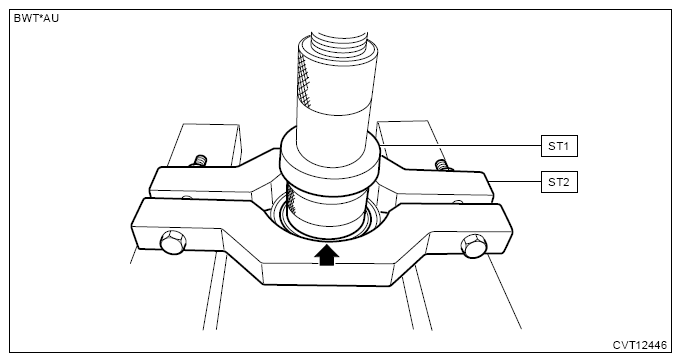

- Remove the ball bearing using ST1, ST2 and a press.
CAUTION:
Be careful not to drop the drive sprocket.
Preparation tool:
ST1: HOUSING BUSHING INSTALLER AND REMOVER (927720000)
ST2: REMOVER (498077600)
 Courtesy of SUBARU OF AMERICA, INC.
|
