Oil Pump Chain: Installation
- Press-fit a new oil seal using ST and a press.NOTE: Apply CVTF to the press-fitting area.
Preparation tool:
ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

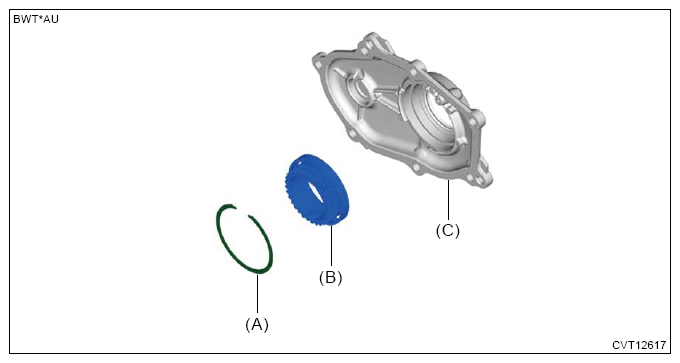

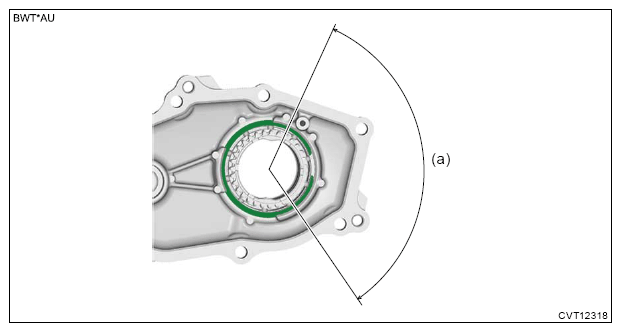

- Install the drive sprocket and snap ring.NOTE: Align the snap ring opening with the position (a) shown in the figure.

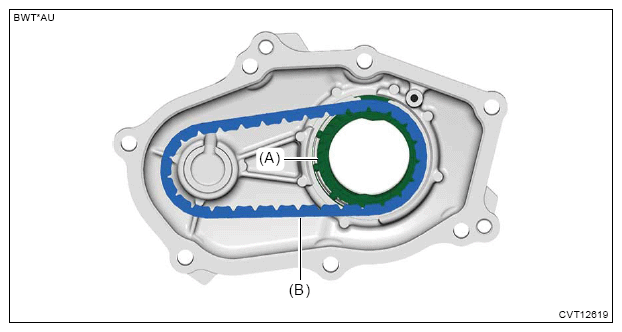

(A) Snap ring (B) Drive sprocket (C) Oil pump chain cover - Place the oil pump chain (B) on the drive sprocket (A).

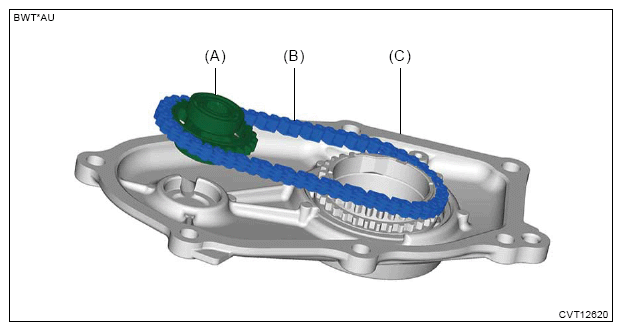

- Place the oil pump chain (B) on the driven sprocket (A), and install the driven sprocket (A) to the oil pump chain cover (C).
- Install a new seal ring.NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.

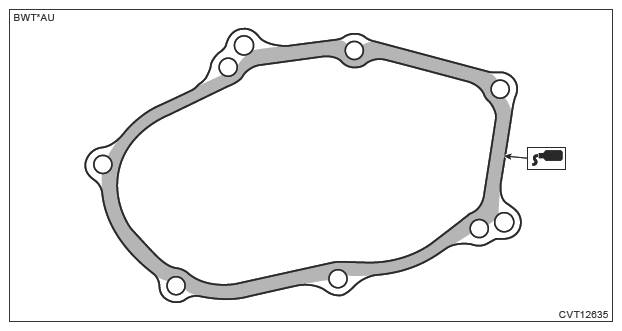

- Apply liquid gasket to the mating surface of the oil pump chain cover as shown in the figure, and temporarily install the oil pump chain cover.NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the oil pump chain cover and converter case.
- Install within 5 min. after applying liquid gasket.
Preparation items:
Liquid gasket: THREE BOND 1215B or equivalent

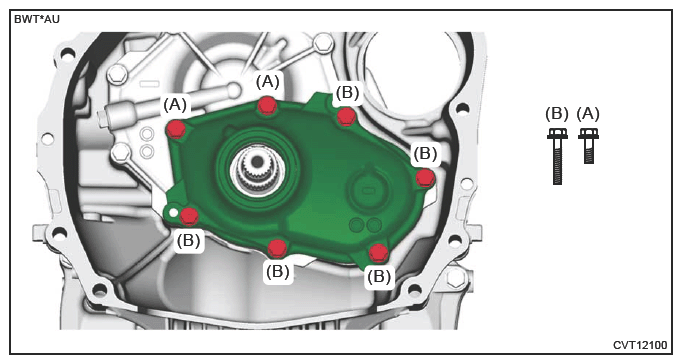

(A) M8 x 22 (B) M8 x 35 - Tighten the oil pump chain cover mounting bolts.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)
- Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>INSTALLATION .
