Rear Drive Shaft: Assembly

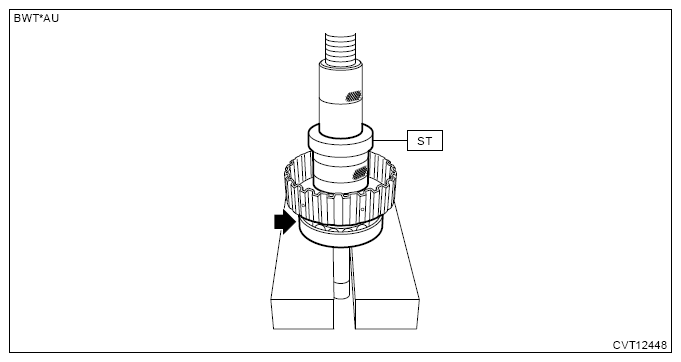

  1. Using the ST and a press, press-fit a new ball bearing.
    NOTE: Apply CVTF to the press-fitting area.

    Preparation tool:

    ST: INSTALLER (399513600)

    G13622091Courtesy of SUBARU OF AMERICA, INC.
