Reduction Driven Gear: Assembly

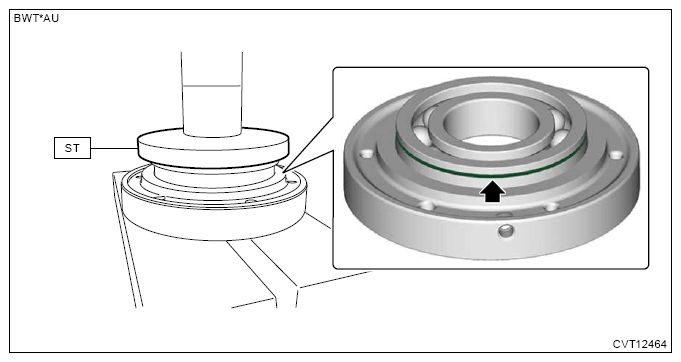

Using the ST and a press, press-fit a new ball bearing into the bearing retainer.
NOTE:
- Press-fit into the position where it contacts the snap ring.
- Apply CVTF to the press-fitting area.
Preparation tool:

ST: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.

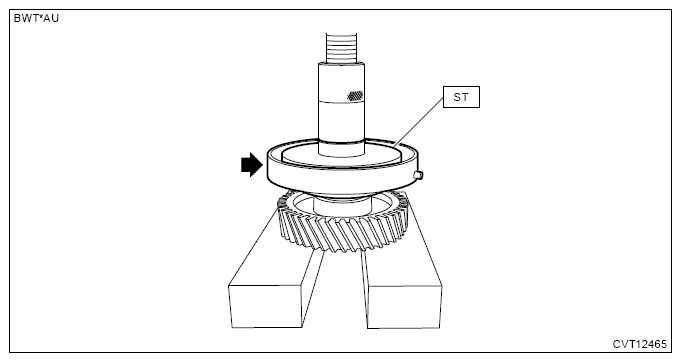

Using the ST and a press, press-fit the bearing retainer into the reduction driven gear.
Preparation tool:

ST: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.
