Reverse Brake: Disassembly

Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.

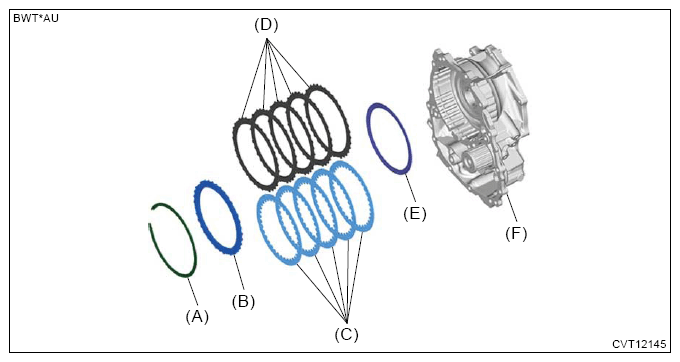

G16389669

Courtesy of SUBARU OF AMERICA, INC.

(A)	Snap ring
(B)	Retaining plate
(C)	Drive plate
(D)	Driven plate
(E)	Dish plate
(F)	Intermediate case

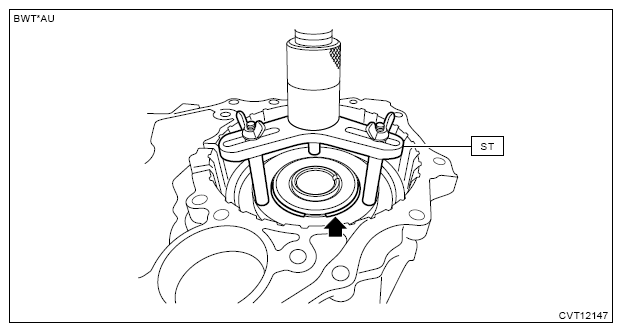

Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

Remove the spring retainer and return spring.

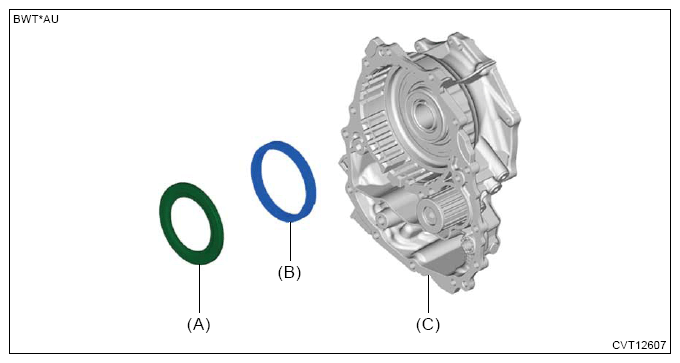

G16389671

Courtesy of SUBARU OF AMERICA, INC.

(A)	Spring retainer
(B)	Return spring
(C)	Intermediate case

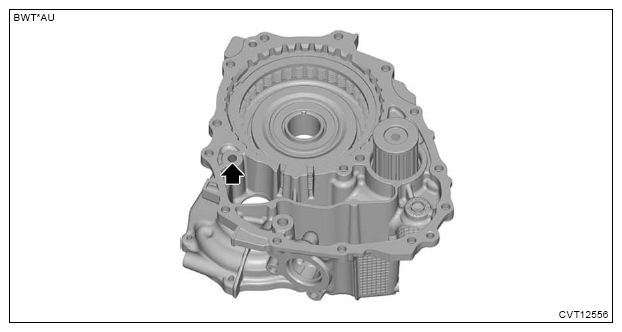

Blow compressed air through the hole shown in the figure, and remove the reverse brake piston.

Courtesy of SUBARU OF AMERICA, INC.
