Transfer Reduction Driven Gear: Disassembly

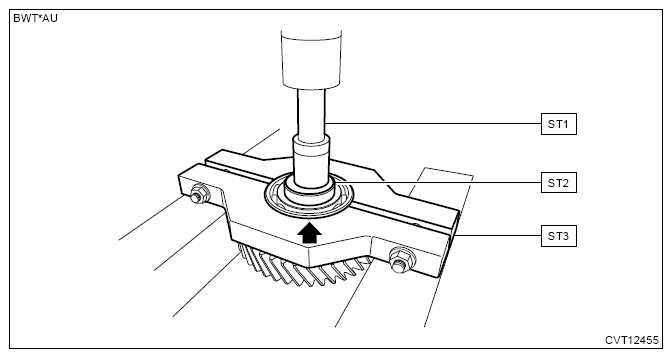

Using the ST1, ST2, ST3 and a press, remove the transfer reduction driven gear.
CAUTION: Be careful not to drop the transfer reduction driven gear.

Preparation tool:

ST1: REMOVER (899864100)

ST2: SEAT (398497701)

ST3: REMOVER (498077600)

Courtesy of SUBARU OF AMERICA, INC.
