Transmission Case: Installation

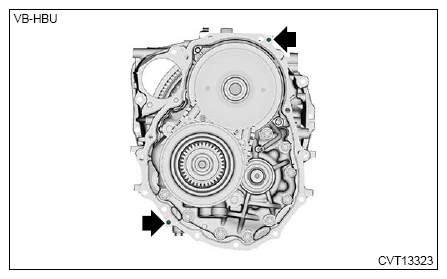

Check the projection (A) of the knock pins.
NOTE: When attached on the transmission case side, install on the converter case side.

Specification:

8.5 - 9.5 mm (0.33 - 0.37 in)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

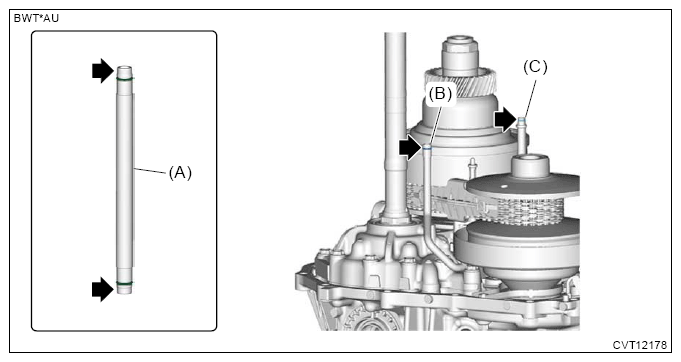

Install new O-rings to the application pressure pipe (A), release pressure pipe (B) and lubrication pipe (C).
NOTE:
- Apply CVTF to the O-rings.
- Make sure that the lubrication pipe (C) is installed vertically.
Courtesy of SUBARU OF AMERICA, INC.

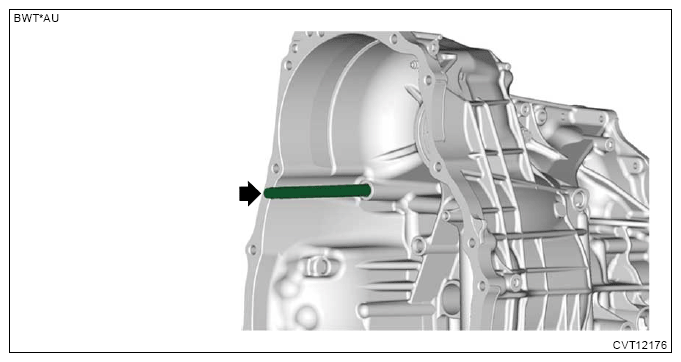

Set the application pressure pipe.
NOTE: Set so that the application pressure pipe is positioned vertically.

Courtesy of SUBARU OF AMERICA, INC.

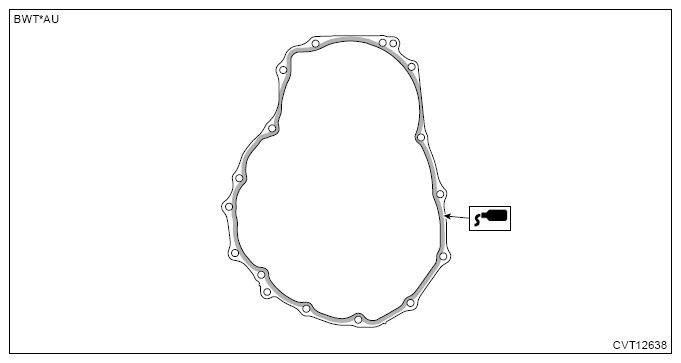

Apply liquid gasket to the mating surface of the converter case as shown in the figure, and temporarily install the transmission case.
CAUTION: Install each pipe while confirming that its location is correct.
NOTE:
- Before applying liquid gasket, degrease the liquid gasket seal surface of the transmission case and converter case.
- Install within 5 min. after applying liquid gasket.
Preparation items:

Liquid gasket: THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which hold the transmission case.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

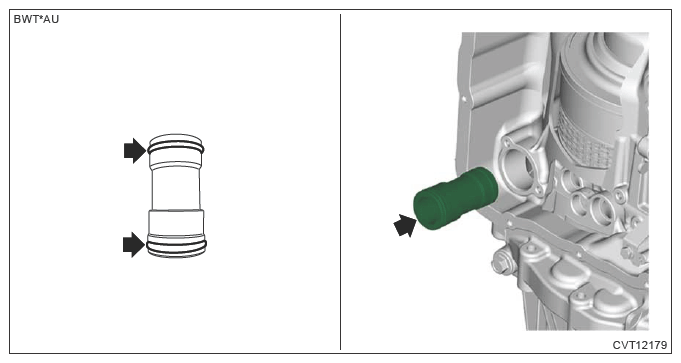

Install the CVTF pipe using a new O-ring.
NOTE:
- Apply CVTF to the O-rings.
- The smaller opening side of CVTF pipe should be inserted first.
Courtesy of SUBARU OF AMERICA, INC.
Install the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REDUCTION DRIVEN GEAR>INSTALLATION .
Install the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CONTROL DEVICE>INSTALLATION .
Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>INSTALLATION .
Install the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>SECONDARY SPEED SENSOR>INSTALLATION .
