Transmission Case: Removal

  1. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>SECONDARY SPEED SENSOR>REMOVAL .
  2. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>REMOVAL .
  3. Remove the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CONTROL DEVICE>REMOVAL .
  4. Remove the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REDUCTION DRIVEN GEAR>REMOVAL .

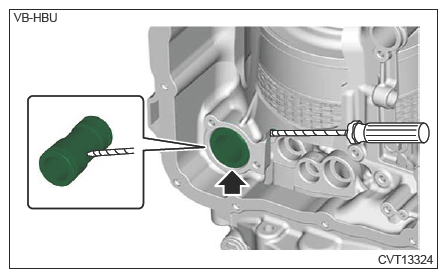

  5. Remove the CVTF pipe using a flat tip screwdriver wrapped with protection tape.
    NOTE: Engage a flat tip screwdriver tip to the stepped portion of CVTF pipe.
    G14611384Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolt securing the transmission case.
    G13200229Courtesy of SUBARU OF AMERICA, INC.

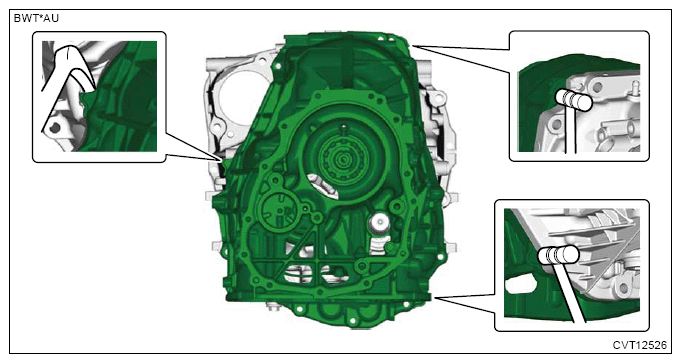

  7. Using a plastic hammer and a crowbar wrapped with protection tape or similar, expand the clearance and remove the transmission case.
    G13622223Courtesy of SUBARU OF AMERICA, INC.

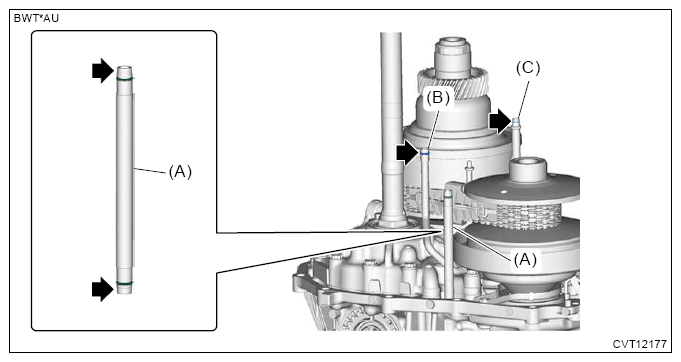

  8. Remove the application pressure pipe (A), and remove the O-rings from the application pressure pipe (A), release pressure pipe (B) and lubrication pipe (C).
    NOTE: The application pressure pipe (A) may remain in the transmission case side.
    G13622224Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the liquid gasket from the transmission case and converter case.
