Transmission Control Device: Installation

Install a new oil seal using ST.
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST: INSTALLER (18657AA000)

Courtesy of SUBARU OF AMERICA, INC.

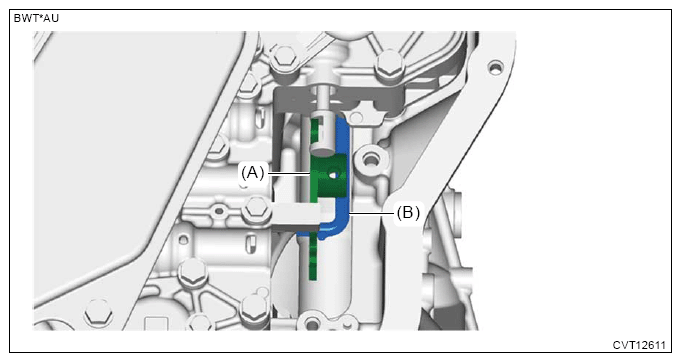

Install the parking rod to the manual plate.
Set the manual plate (A) and parking rod (B) as a single unit.

Courtesy of SUBARU OF AMERICA, INC.

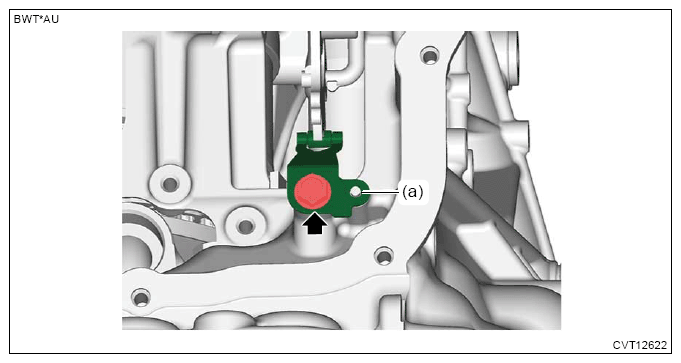

Install the detent spring.
NOTE: Make sure that the positioning hole of the detent spring is inserted into the pin (a).

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

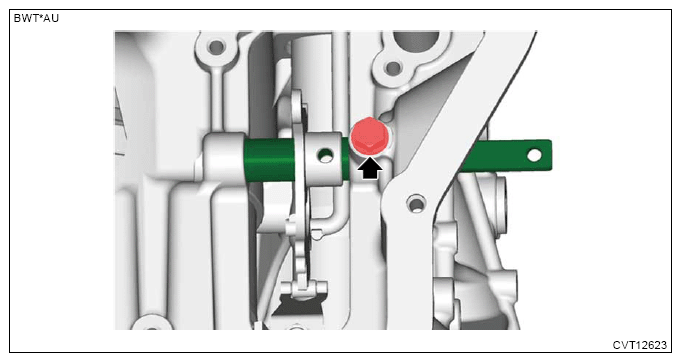

Install the shifter arm shaft.
CAUTION: Be careful not to damage the oil seal.
NOTE:
- Apply CVTF to the oil seal lip.
- While raising the detent spring with the manual plate, insert the shifter arm shaft.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

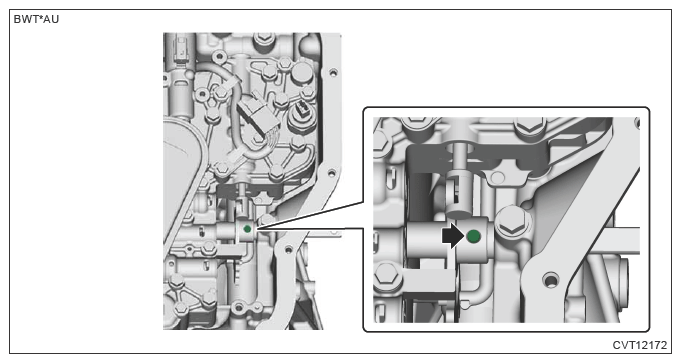

Install a new spring pin.

Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>INSTALLATION .
Install the oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PAN>INSTALLATION .
Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PARKING PAWL>INSTALLATION .
