Transmission Control Device: Removal

  1. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PARKING PAWL>REMOVAL .
  2. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>REMOVAL .
  3. Remove the oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PAN>REMOVAL .
  4. Remove the spring pin.
    NOTE: Be careful not to drop the spring pin in the transmission.
    G13622211Courtesy of SUBARU OF AMERICA, INC.

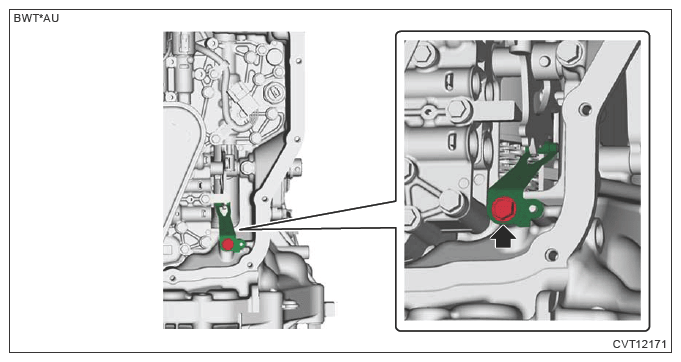

  5. Remove the detent spring.
    G13622212Courtesy of SUBARU OF AMERICA, INC.

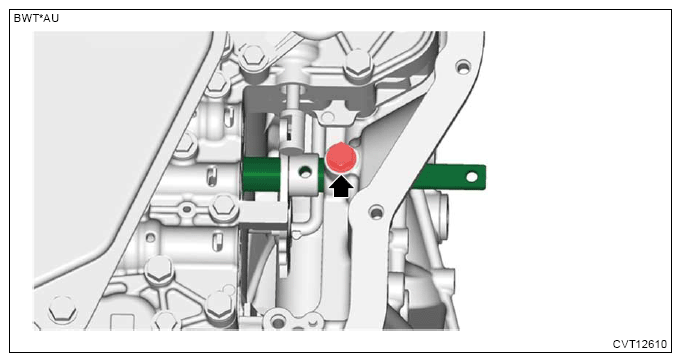

  6. Remove the shifter arm shaft.
    G13622213Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the manual plate (A) and parking rod (B) as a single unit.
    G13622214Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the parking rod from the manual plate.

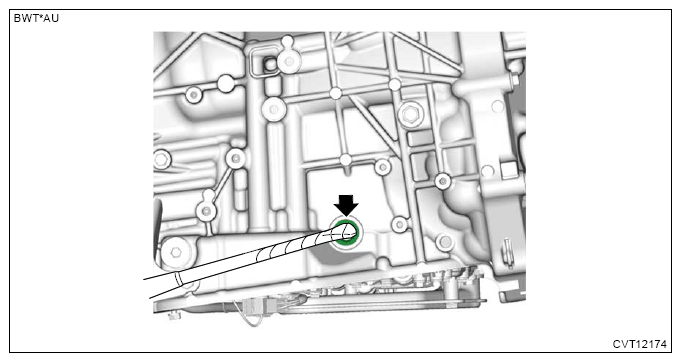

  9. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
    G13622215Courtesy of SUBARU OF AMERICA, INC.
