Transmission Harness: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL .

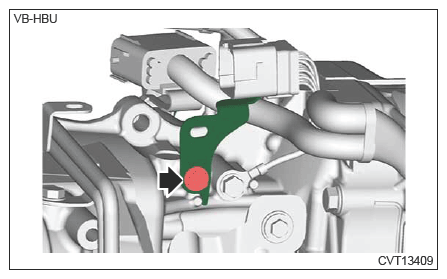

  3. Remove the stay.
    G14611131Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the ST.
    NOTE: When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G13225799Courtesy of SUBARU OF AMERICA, INC.
  5. Place the transmission body.
    NOTE: Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.
  6. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
  7. Remove the bolt securing the transmission harness.
    G12452314Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the ground terminal, and disconnect the connectors from the secondary speed sensor and front wheel speed sensor.
    G13621982Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the ground terminal, and disconnect the connectors from the primary speed sensor, secondary pressure sensor and inhibitor switch.
    G16440415Courtesy of SUBARU OF AMERICA, INC.
  10. Remove all clips and remove the transmission harness.
  11. Remove the O-rings.
    G13621987Courtesy of SUBARU OF AMERICA, INC.
