Pitching Stopper

  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  2. Disconnect the air breather hose from the clip.

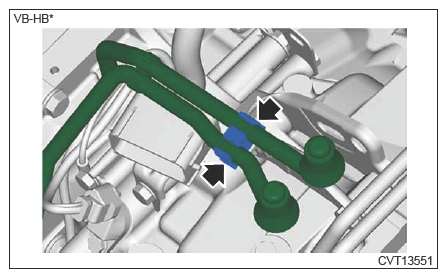

    G14611075Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the ground cord.
    1. Remove the clip.
    2. Disconnect the coupling connector.
    G13200012Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the pitching stopper plate.
    G13200013Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the pitching stopper.
    G13200014Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    1. Remove the bolts securing the CVTF cooler pipe No. 1.

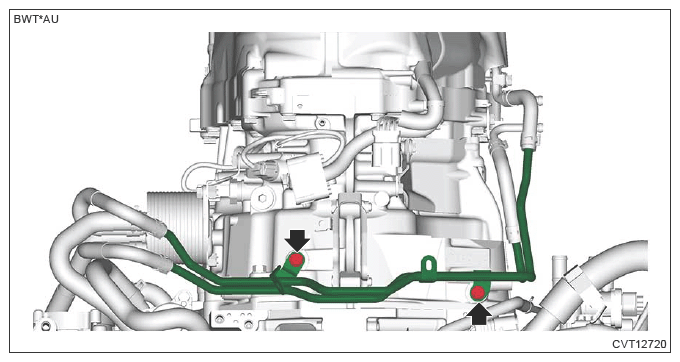

      G13621888Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the pitching stopper bracket.
      G13621925Courtesy of SUBARU OF AMERICA, INC.
