Fuel Tank: Disassembly

  1. Remove the hoses from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 1 .
  2. Remove the fuel pump. (Impreza model) Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL PUMP>REMOVAL>IMPREZA MODEL .
  3. Remove the fuel sub delivery tube. (Crosstrek model) Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL .
  4. Remove the fuel tank cover from the fuel tank.

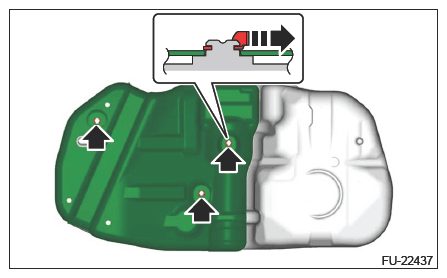

    • Impreza model
      G16340724Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model
      G14601094Courtesy of SUBARU OF AMERICA, INC.
