Fuel Injector

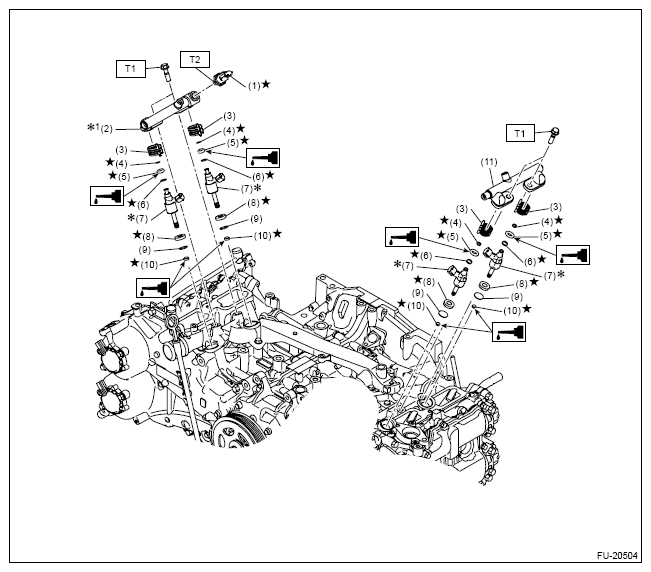

2.0 L model

G16340371

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel pressure sensor
(2)	Fuel injector pipe RH
(3)	Fuel injector holder
(4)	Stopper ring
(5)	O-ring seal
(6)	Back-up ring
(7)	Fuel injector
(8)	Slider washer
(9)	C-ring
(10)	Fuel injector seal
(11)	Fuel injector pipe LH

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 46 (4.7, 33.9)

*1 When removing the fuel pressure sensor from the fuel injector pipe RH, replace it with a new one.

2.5 L model

Fig 1: Fuel Injector Components Location - 2.5 L Model

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel pressure sensor
(2)	Fuel injector pipe RH
(3)	Fuel injector holder
(4)	Stopper ring
(5)	O-ring seal
(6)	Back-up ring
(7)	Fuel injector
(8)	Slider washer
(9)	C-ring
(10)	Fuel injector seal
(11)	Fuel injector pipe LH
(12)	Coupling harness

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 46 (4.7, 33.9)

*When removing the fuel pressure sensor from the fuel injector pipe RH, replace it with a new one.
