Fuel Pump

Impreza model

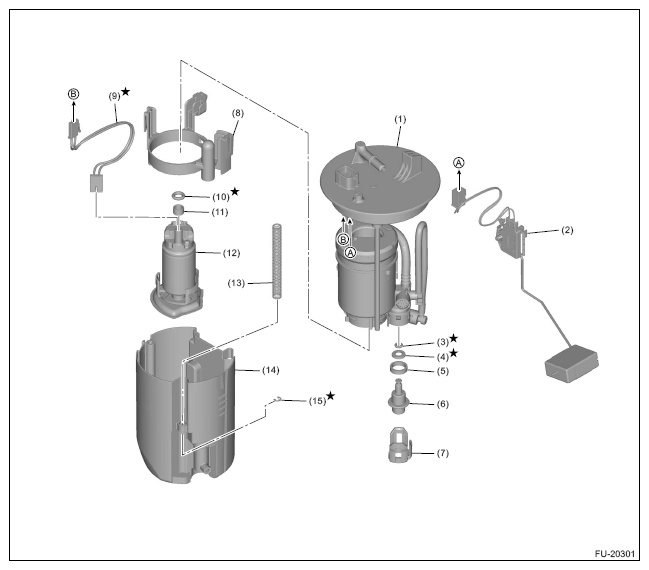

G16340392

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel filter ASSY
(2)	Fuel level sensor
(3)	O-ring
(4)	O-ring
(5)	Back-up ring
(6)	Pressure regulator
(7)	Pressure regulator cap
(8)	Fuel pump holder
(9)	Connector cable
(10)	O-ring
(11)	Spacer
(12)	Fuel pump
(13)	Spring
(14)	Fuel chamber ASSY
(15)	Clip

Crosstrek model

G16340393

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel filter ASSY
(2)	Fuel level sensor
(3)	O-ring
(4)	O-ring
(5)	Back-up ring
(6)	Pressure regulator
(7)	Pressure regulator cap
(8)	Fuel pump holder
(9)	Connector cable
(10)	O-ring
(11)	Spacer
(12)	Fuel pump
(13)	Spring
(14)	Fuel chamber ASSY
(15)	Clip
(16)	O-ring
