Intake Manifold Assembly

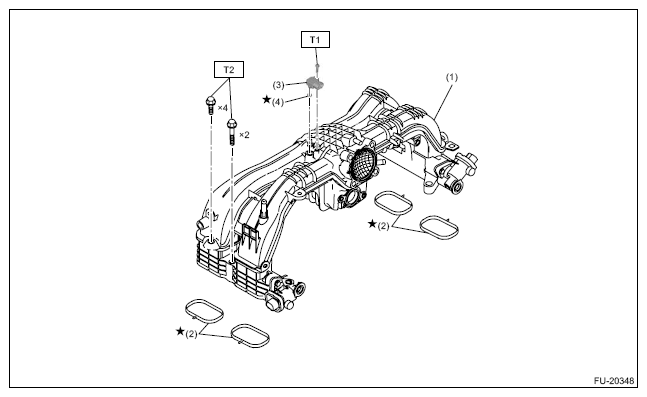

Impreza model

G16340368

Courtesy of SUBARU OF AMERICA, INC.

(1)	Intake manifold ASSY
(2)	Gasket
(3)	Manifold absolute pressure sensor
(4)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)

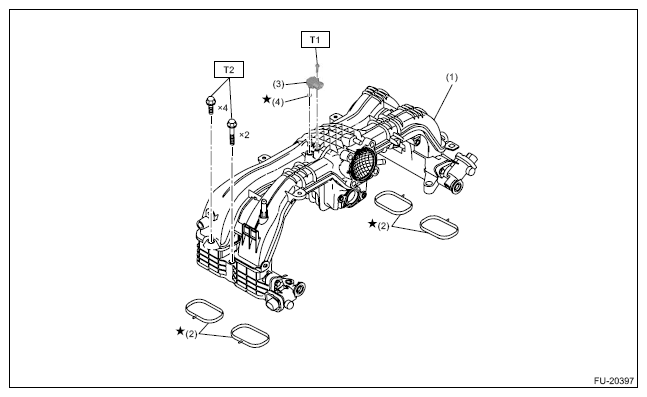

2.0 L Crosstrek model

G16340369

Courtesy of SUBARU OF AMERICA, INC.

(1)	Intake manifold ASSY
(2)	Gasket
(3)	Manifold absolute pressure sensor
(4)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)

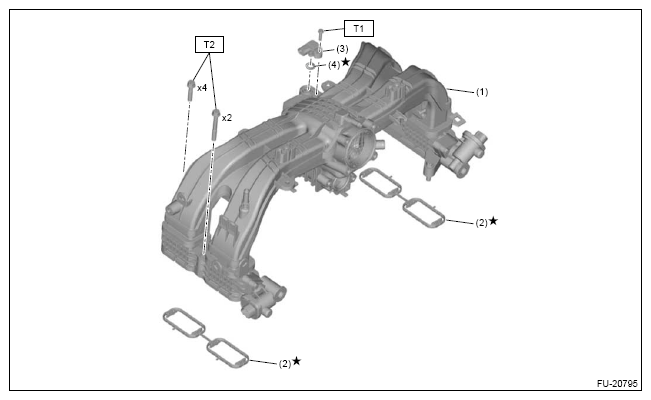

2.5 L Crosstrek model

G16340370

Courtesy of SUBARU OF AMERICA, INC.

(1)	Intake manifold ASSY
(2)	Gasket
(3)	Manifold absolute pressure sensor
(4)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)
