Select Cable: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13225109Courtesy of SUBARU OF AMERICA, INC.
  3. Lift up the vehicle.
  4. Remove the rear exhaust pipe and center exhaust cover. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>REAR EXHAUST PIPE>REMOVAL .
  5. Remove the inhibitor cover. (Crosstrek hybrid model)
    G13232270Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the select cable from the transmission main body.

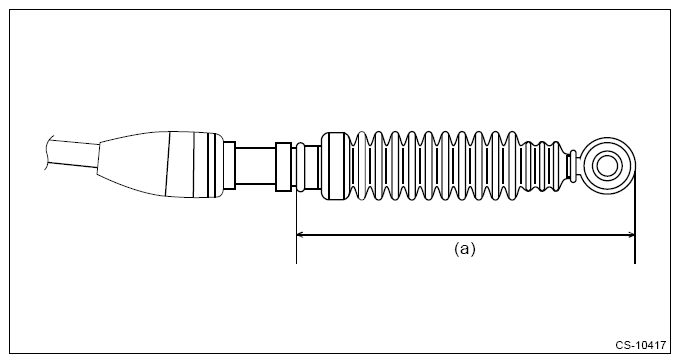

    CAUTION: Do not apply excessive load while holding the part (a).
    G16350077Courtesy of SUBARU OF AMERICA, INC.
    • Except for Crosstrek hybrid model
      G13225470Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek hybrid model
      G13602910Courtesy of SUBARU OF AMERICA, INC.

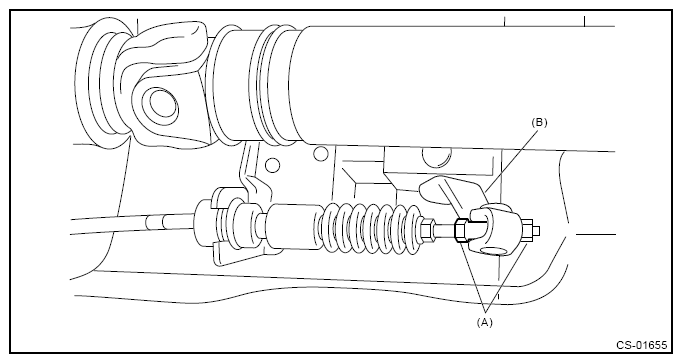

  7. Disconnect the cable from arm COMPL.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13602906Courtesy of SUBARU OF AMERICA, INC.
    G16350081Courtesy of SUBARU OF AMERICA, INC.
    (A) Adjusting nut
    (B) Arm COMPL

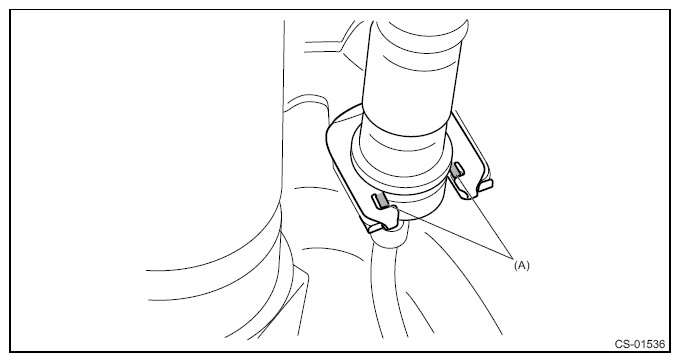

  8. Raise the claw of clamp to remove the cable from bracket.
    G16350082Courtesy of SUBARU OF AMERICA, INC.
    (A) Claw
  9. Remove the select cable from the cable plate.
