MT Gear Shift Lever: Assembly
NOTE:
- Assembly is available only for 5MT model.
- Clean all the parts before assembly.
- Apply NIGTIGHT LTS No. 2 grease or equivalent to each part. Ref. to CONTROL SYSTEMS>GENERAL DESCRIPTION>COMPONENT>5MT GEAR SHIFT LEVER .
- Mount the bushing and cushion rubber to the stay.
(A) Bushing (B) Stay (C) Cushion rubber - Install the bushing and spacer to boss.
(A) Bushing (B) Spacer - Install the boss to the joint.NOTE: Use a new self-locking nut.
Tightening torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)
- Install the snap ring to gear shift lever and install the bushing.NOTE: Apply grease to the bushing.
(A) Spring pin (B) Ball joint (C) Snap ring - Apply grease to the bushing B and O-ring, and then install to gear shift lever.
(A) O-ring (B) Bushing B - Apply sufficient grease into boss, and then install the gear shift lever to the stay.
- Install the snap ring.

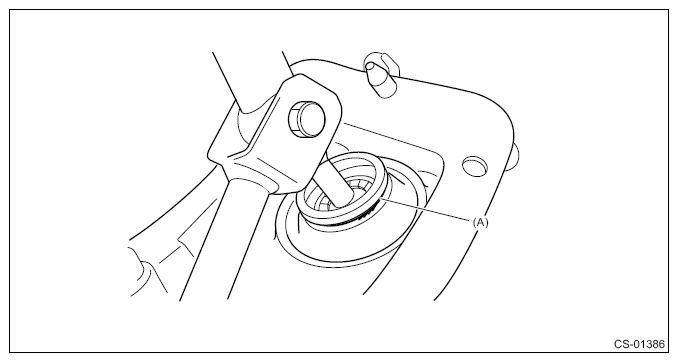

(A) Snap ring - Insert the gear shift lever and rod into boot hole.
- Install the rod.NOTE: Use a new self-locking nut.
Tightening torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)

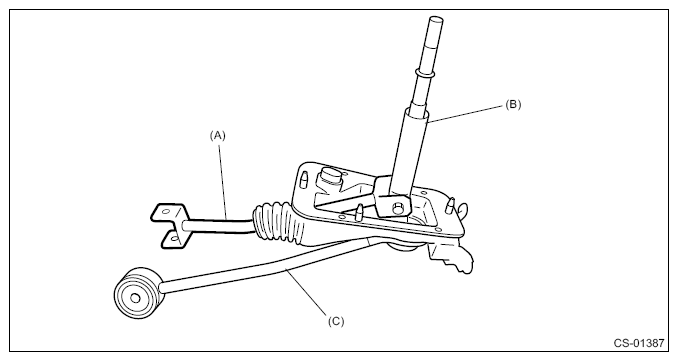

(A) Rod (B) Lever (C) Stay - Install the lock wire.NOTE: Use a new lock wire.

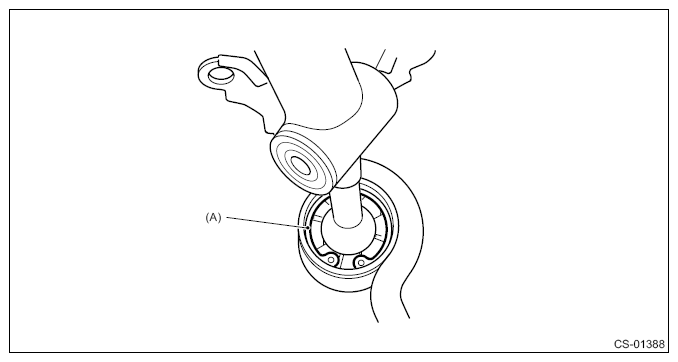

(A) Lock wire NOTE:- Install the lock wire to the stay groove.
- Bend the extra wire to the same direction of lock wire winding.

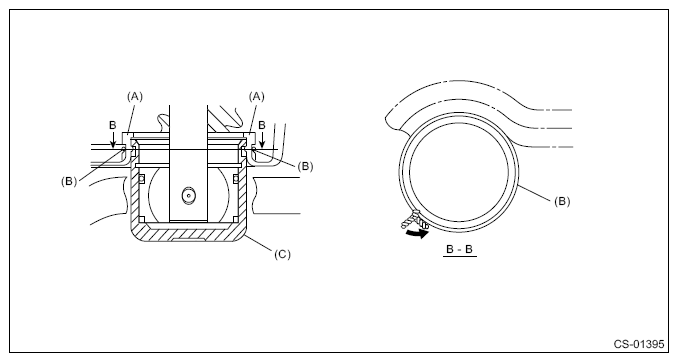

(A) Inner boot (B) Lock wire (C) Stay
