Oil Pan

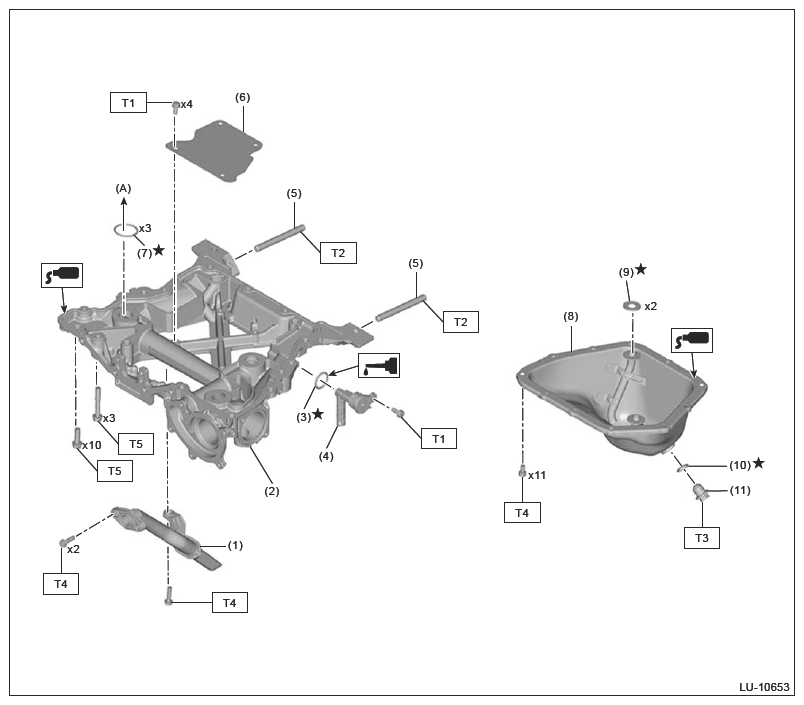

Fig 1: Oil Pan Components Location

G16335695

Courtesy of SUBARU OF AMERICA, INC.

(A)	To engine unit
(1)	Oil strainer
(2)	Oil pan upper
(3)	O-ring
(4)	Oil level switch
(5)	Stud bolt
(6)	Baffle plate
(7)	O-ring
(8)	Oil pan
(9)	Gasket
(10)	Gasket
(11)	Drain plug

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4: Ref. to LUBRICATION (H4DO)>OIL PAN>INSTALLATION>OIL PAN .

T5: Ref. to LUBRICATION (H4DO)>OIL PAN>INSTALLATION>OIL PAN UPPER .
