Condition Check

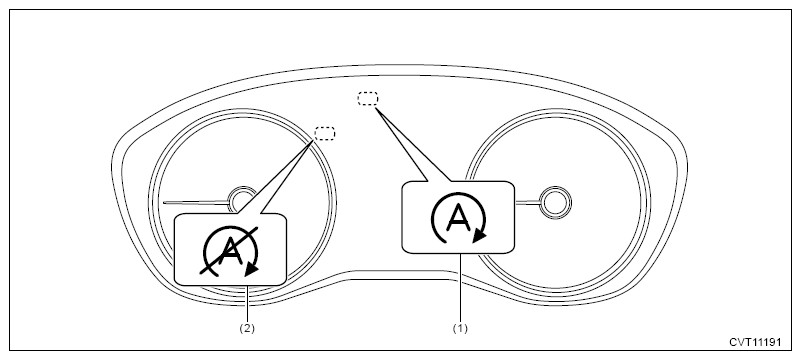

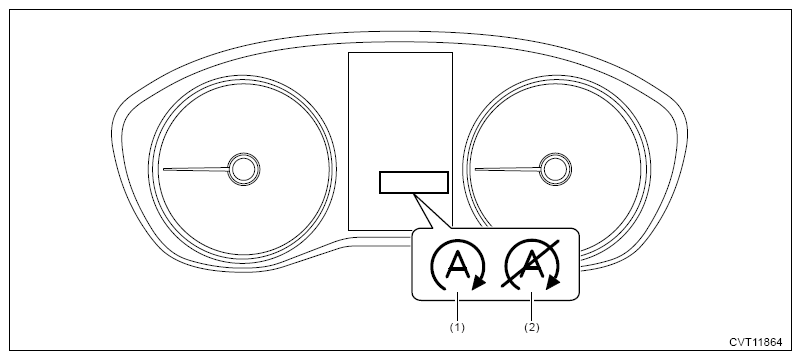

The illumination status of the Auto Start Stop indicator, Auto Start Stop OFF indicator and Auto Start Stop deactivation indicator is related to the vehicle status as follows.

Vehicle condition Ignition switch ON When Auto Start Stop operation condition is not met During Auto Start Stop During Auto Start Stop cancellation(1) Malfunction occurs during Auto Start Stop
Auto Start Stop indicator status Light OFF Light OFF Light ON (green) Light OFF Light OFF
Auto Start Stop OFF indicator status Light ON (yellow)(2) Light OFF Light OFF Light ON (yellow) Blink (yellow)
Auto Start Stop deactivation indicator status Light OFF Light ON Light OFF Light OFF Light OFF
(1) Following conditions
  • Auto Start Stop is canceled by operating the Auto Start Stop cancel switch.
  • The conditions become out of the Auto Start Stop criteria during Auto Start Stop, and the system cannot restart.

(2) After engine is started, it goes off.
