Inspection Mode H

DTC DESCRIPTION - INSPECTION MODE H

DTC Description & trouble part Condition Number of driving cycles on the detecting condition
P0071 AMBIENT AIR TEMPERATURE SENSOR CIRCUIT "A" RANGE/PERFORMANCE
  • 6 hours or more have elapsed since ignition switch is OFF under a completely warmed up condition.
  • For models with block heater, at least 6 hours must have elapsed without operating the block heater.
 2
P0111 INTAKE AIR TEMPERATURE SENSOR 1 CIRCUIT RANGE/PERFORMANCE BANK 1 2
P0116 ENGINE COOLANT TEMPERATURE SENSOR 1 CIRCUIT RANGE/PERFORMANCE 2
P0196 ENGINE OIL TEMPERATURE SENSOR "A" RANGE/PERFORMANCE 2
P050A COLD START IDLE CONTROL SYSTEM PERFORMANCE - 2
P050B COLD START IGNITION TIMING PERFORMANCE - 2
P2183 ENGINE COOLANT TEMPERATURE SENSOR 2 CIRCUIT RANGE/PERFORMANCE - 2
P24B9 EVAP SYSTEM LEAK DETECTION PUMP PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE 60 seconds or more have elapsed since ignition switch is OFF. 2
P2B08 COLD START CYLINDER 1 INJECTION PULSE PERFORMANCE - 2
P2B09 COLD START CYLINDER 2 INJECTION PULSE PERFORMANCE - 2
P2B0A COLD START CYLINDER 3 INJECTION PULSE PERFORMANCE - 2
P2B0B COLD START CYLINDER 4 INJECTION PULSE PERFORMANCE - 2
  1. Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
  2. Using the Subaru Select Monitor, perform the clear memory of [Engine Control System]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
  3. With the ignition switch ON (engine stopped), read the values in [Engine Coolant Temperature 1] and [Intake Air Temp.]. Ref. to COMMON (DIAGNOSTICS)>DATA MONITOR .
  4. If the values from step 3) satisfy the following conditions, idle the engine for two minutes or more.
    CAUTION: Engine coolant temperature - Intake air temperature! ≤ 5°C (9°F)
    NOTE:
    • If the conditions are not satisfied, turn the ignition switch to OFF and wait until the parameters are satisfied.
    • Hold the select lever in "P" range or "N" range at idling.
  5. Drive according to the drive pattern described below.

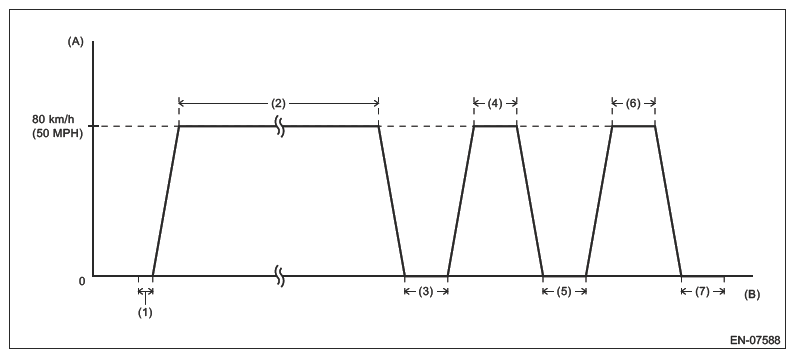

    G16340183Courtesy of SUBARU OF AMERICA, INC.
    (A) Vehicle speed
    (B) Elapsed time
    (1) Idle the engine for 2 minutes or more.
    (2) Drive for a total period of 15 minutes or more at a speed of 80 km/h (50 MPH) or more.
    (3) Stop the vehicle and idle for 30 seconds or more.
    (4) Drive for 30 seconds or more at a constant speed of 80 km/h (50 MPH) or more.
    (5) Stop the vehicle and idle for 30 seconds or more.
    (6) Drive for 30 seconds or more at a constant speed of 80 km/h (50 MPH) or more.
    (7) Stop the vehicle and idle for 30 seconds.
    NOTE:
    • In pattern (2), it is acceptable to decelerate to less than 80 km/h (50 MPH) or to stop the vehicle depending on the traffic conditions. Drive the vehicle at 80 km/h (50 MPH) or more until the total driving time reaches or exceeds 15 minutes.
    • There is no given transition time between idling and cruising.
    • Driving at constant speed only on a downhill causes smaller engine load and may result in failure to obtain a right diagnostic result.
    • If the ignition switch is turned to OFF during inspection mode F, perform this driving cycle again after satisfying the conditions listed in the table.
  6. Read the readiness code of [Engine Control System] using Subaru Select Monitor and check that the concerned self-diagnosis is completed. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>ALL READINESS DIAGNOSTIC CODE(S) .
  7. Read the pending code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
