Select Cable: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

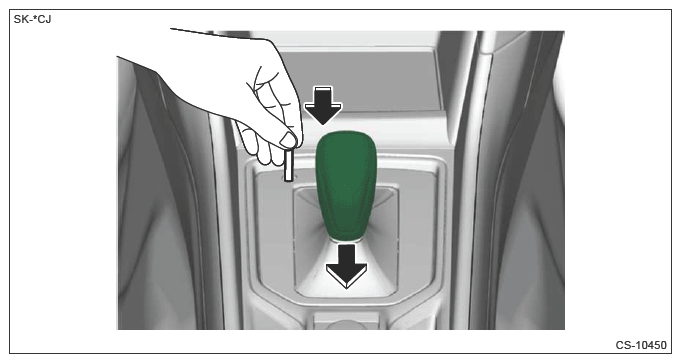

  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13868655Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the center exhaust cover. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .
  4. Disconnect the select cable from the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.

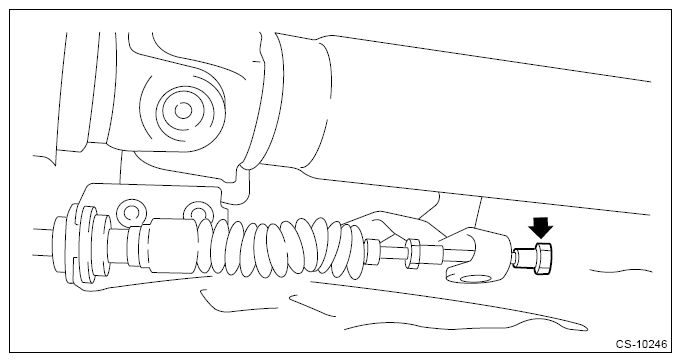

  5. Remove the adjusting nut (rear).
    G13591853Courtesy of SUBARU OF AMERICA, INC.

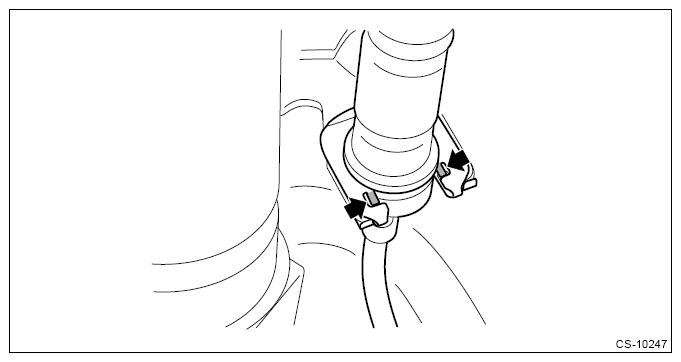

  6. Raise the claw of clamp to remove the clamp and remove the select cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591854Courtesy of SUBARU OF AMERICA, INC.
    G13225510Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the select cable from the cable plate.
G13225512Courtesy of SUBARU OF AMERICA, INC.
