Fuel Insulator: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
  3. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>REMOVAL .

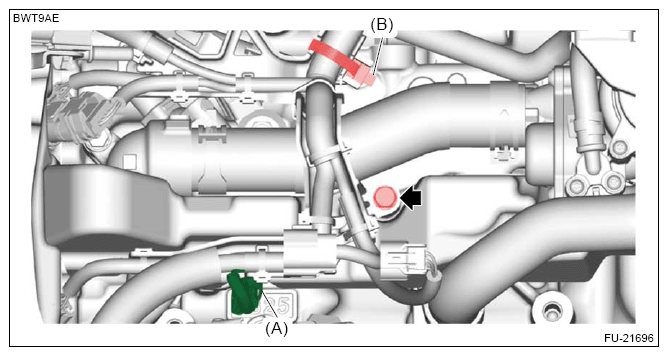

  6. Disconnect the connector (A) from the outlet engine coolant temperature sensor.
  7. Remove the clip (B) securing the engine wiring harness.
  8. Remove the bolts securing the engine wiring harness.
    G14383501Courtesy of SUBARU OF AMERICA, INC.

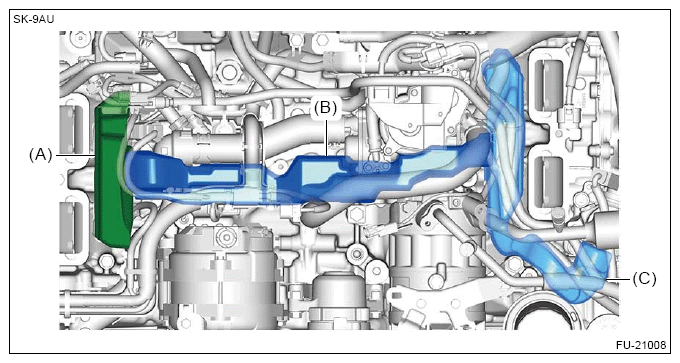

  9. Remove the fuel pipe insulator.
G16334719Courtesy of SUBARU OF AMERICA, INC.
(A) Fuel pipe insulator No. 1
(B) Fuel pipe insulator No. 2
(C) Fuel pipe insulator No. 3
